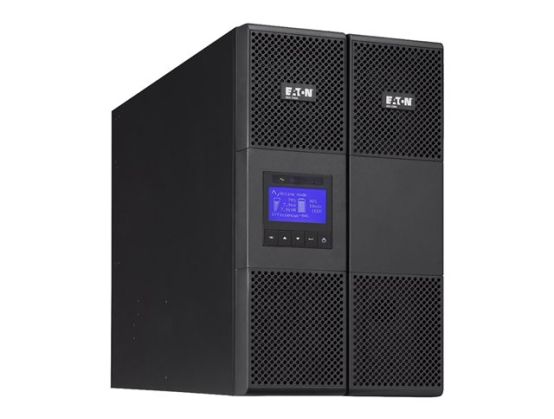

Eaton 9SX 9SX8Ki - UPS (rack-mountable / external) - AC 200/208/220/230/240/250 V - 7200 watt - 8000 VA - RS-232, USB - PFC - 6U
£3605 .62
£4326.74 inc VAT
Checking delivery…
Product details
UPS (rack-mountable / external)
AC 200/208/220/230/240/250 V
7200 Watt
8000 VA
Payment options available at checkout
Main features
Eaton 9SX 9SX8Ki
UPS (rack-mountable / external)
AC 200/208/220/230/240/250 V
7200 Watt
8000 VA
RS-232, USB
PFC
6U
Overview
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.
Product Description
Eaton 9SX 9SX8Ki - UPS - 7200 Watt - 8000 VA
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Rack Size
6U
Weight
77 kg
Input Voltage
AC 200/208/220/230/240/250 V
Output Voltage
AC 200/208/220/230/240/250 V
Power Capacity
7200 Watt / 8000 VA
Input Connectors
Hardwire
Output connectors
1 x hardwire
Battery
Expandable
Battery Form Factor
Plug-in module
Run Time (Up To)
3 min at full load
Networking
RS-232, USB
Included Accessories
Tower stand
Dimensions (WxDxH)
26 cm x 70 cm x 44 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Battery Enclosure Type
Plug-in module
Height (Rack Units)
6U
Power Device
UPS Technology
On-line
Power Modules Qty
1
Supported Power Modules Qty
12
Input Voltage
AC 200/208/220/230/240/250 V
Input Voltage Range
AC 176 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
Hardwire
Power Output Connectors Details
1 x hardwire
Output Voltage
AC 200/208/220/230/240/250 V 50/60 Hz
Power Capacity
7200 Watt / 8000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x serial - RS-232 ¦ 1 x USB - 4 pin USB Type B ¦ Management - EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Included Accessories
Tower stand
Cables Included
Serial cable - external ¦ USB cable - external
Features
Advance Battery Management (ABM), LCD display, internal bypass, LED indicators, deep discharge protection, cold-start function, automatic self-test
Compliant Standards
UL, ISO 9001, ISO 140001, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, CSA 22.2, EN 62040-1-1, EN 62040-2
Software / System Requirements
Software Included
Intelligent Power Software Suite
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Sound Emission
48 dBA
Dimensions & Weight
Width
26 cm
Depth
70 cm
Height
44 cm
Weight
77 kg
