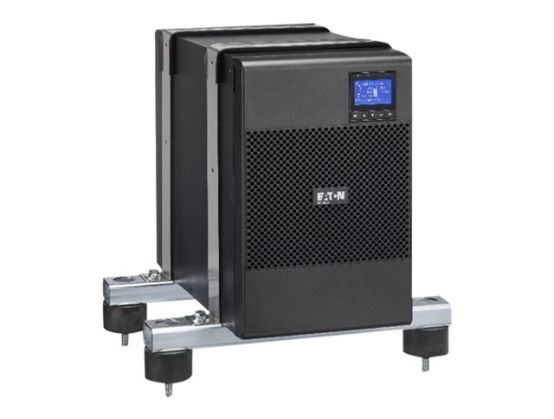

Eaton 9SX Marine 9SX3000IMBS - UPS - 2700 Watt - 3000 VA
Manufacture#: 9SX3000IMBS
£1388 .44
£1666.13 inc VAT
Checking delivery…
Product details
UPS
AC 200/208/220/230/240 V
2700 Watt
3000 VA
Payment options available at checkout
Main features
Eaton 9SX Marine 9SX3000IMBS
UPS
AC 200/208/220/230/240 V
2700 Watt
3000 VA
1-phase
9 Ah
RS-232, USB
output connectors: 9
black
Overview
Eaton 9SX Marine 9SX3000IMBS - UPS - 2700 Watt - 3000 VA
Product Description
Eaton 9SX Marine 9SX3000IMBS - UPS - 2700 Watt - 3000 VA
Device Type
UPS - external
Weight
34 kg
Input Wiring
1-phase
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V ± 2%
Power Capacity
2700 Watt / 3000 VA
Input Connectors
1 x power IEC 60320 C20 16A
Output connectors
8 x power IEC 60320 C13 10A ¦ 1 x power IEC 60320 C19 16A
Battery
Lead Acid expandable - 9 Ah
Run Time (Up To)
6 min
Networking
RS-232, USB
Included Accessories
BS input cord
Colour
Black
Dimensions (WxDxH)
21.4 cm x 41.2 cm x 34.6 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - external
Colour
Black
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 140 - 276 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
40 - 70 Hz
Input Connectors
1 x power IEC 60320 C20 16A
Power Output Connectors Details
8 x power IEC 60320 C13 10A ¦ 1 x power IEC 60320 C19 16A
Output Voltage
AC 200/208/220/230/240 V ± 2% - 50/60 Hz
Power Capacity
2700 Watt / 3000 VA
Power Factor (PF)
0.9
Battery
Type
Expandable
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Run Time (Up To)
6 min at full load
Features
Sealed
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ Remote power off ¦ Relay output
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Included Accessories
BS input cord
Cables Included
2 x power cable - external ¦ Serial cable - external ¦ USB cable - external
Features
Advance Battery Management (ABM), LCD display, internal bypass, double conversion
Compliant Standards
FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-3, CSA C22.2, IEC 62040-2, KCC, cULus, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1, BIS
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 96% (non-condensing)
Sound Emission
45 dB
Dimensions & Weight
Width
21.4 cm
Depth
41.2 cm
Height
34.6 cm
Weight
34 kg
