Eaton Tripp Lite Series Display TV Wall Monitor Mount Arm Swivel/Tilt 26" to 55" TVs / EA / Flat-Screens
Bracket
for flat panel
steel
black
screen size: 26"-55"
wall-mountable
Overview

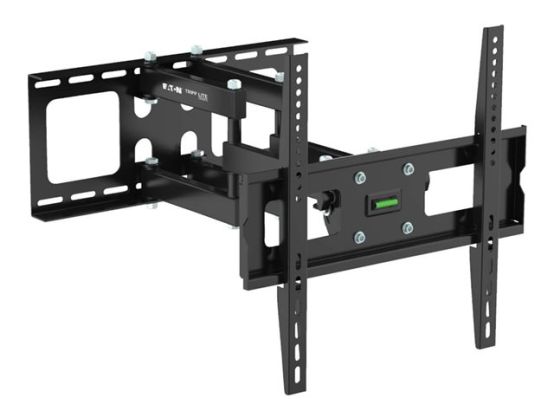

The VESA-compliant DWM2655M Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 26 to 55 inches.
Adjust the display's viewing angle to fit your environment and comfort level. A 120° swivel, -15° to +15° tilt and -5° to +5° screen level adjustment capability minimizes glare and provides comfortable viewing from multiple angles.
Durable all-metal frame with scratch-resistant powder-coated finish supports up to 50 kgs (110 lbs.) Mounting hardware included. Built-in bubble level allows accurate display leveling. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm and 400 x 400 mm.
Fits most flat-panel displays from 26 to 55 in.
One-touch adjustment for comfortable viewing
120° swivel, -15° to +15° tilt and -5° to +5° screen adjustment
Supports up to 110 lbs (49.9 kgs)
Versatile positioningWith both swivel and tilt adjustments, this mount allows for a -15° to 15° tilt and a 120° swivel, enabling optimal viewing angles and reducing glare for a better viewing experience.Durable constructionCrafted from steel with a powder-coated finish, this wall-mountable bracket is designed to support flat panels weighing up to 50 kg, ensuring a secure and stable display of your TV.Easy installationThe inclusion of a water level integrated device and a comprehensive package of screws, spacers, washers, and concrete anchors simplifies the installation process, making it straightforward to mount your TV on the wall.
Product DescriptionEaton Tripp Lite Series Display TV Wall Monitor Mount Arm Swivel/Tilt 26" to 55" TVs / EA / Flat-Screens bracket - for flat panel - black
Product TypeBracket - wall-mountable
Integrated DevicesWater level
Dimensions (WxDxH)51.5 cm x 19.5 cm x 20.32 cm
Adjustable Depth12.5-51.5 cm
Tilt-15° to 15°
Levelling-5° to 5°
Swivel120°
AdjustmentsLevelling, tilt, swivel
Weight8.37 kg
Recommended UseFlat panel
Recommended Display Size26"-55"
VESA Mounting Interface200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 300 x 300 mm
Max Load Weight50 kg
MaterialSteel
ColourBlack
Package Content4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x20 screws, 4 x M8x30 screws, 4 x washers, 8 x spacers (small), 4 x spacers (big), 6 x concrete anchors, 6 x anchor bolts, 6 x D6 washers
Manufacturer Warranty5-year warranty
Extended Specification
General
Width51.5 cm
Depth19.5 cm
Height20.32 cm
Adjustable Depth12.5-51.5 cm
Weight8.37 kg
MaterialSteel
ColourBlack
Package Content4 x M5x14 screws, 4 x M6x14 screws, 4 x M6x30 screws, 4 x M8x20 screws, 4 x M8x30 screws, 4 x washers, 8 x spacers (small), 4 x spacers (big), 6 x concrete anchors, 6 x anchor bolts, 6 x D6 washers
AV Furniture
TypeBracket
Recommended UseFlat panel
Placing / MountingWall-mountable
VESA Mounting Interface200 x 200 mm, 400 x 200 mm, 400 x 400 mm, 300 x 300 mm
