DP OVER CAT6 EXT KIT KIT TRANSMITTER AND RECEIVER WI
Manufacture#: B127A-111-BDTD
Checking delivery…
Product details
Video/audio extender
over CAT 6
up to 70.1 m
TAA Compliant
Payment options available at checkout
Main features

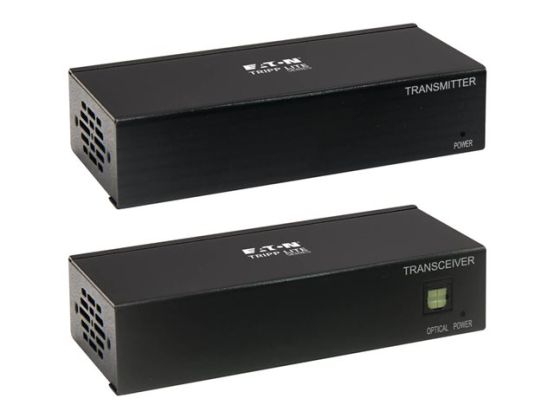

Eaton Tripp Lite Series DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA
Video/audio extender
over CAT 6
up to 70.1 m
TAA Compliant
Overview
DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA.
Product Description
Eaton Tripp Lite Series DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA - video/audio extender - TAA Compliant
Device Type
Video/audio extender
Form Factor
Wall / pole mountable / rack mountable
Localisation
Australia, North America, United Kingdom, Europe
Transmission Medium
CAT 6
Max Transfer Distance
70.1 m
Power Over Ethernet (PoE)
PoC
Power
AC 100-240 V
TAA Compliant
Yes
Manufacturer Warranty
1-year warranty
General
Device Type
Video/audio extender
Form Factor
Wall / pole mountable / rack mountable
Colour
Black
Localisation
Australia, North America, United Kingdom, Europe
Networking
Connectivity Technology
Wired
Max Resolution
3840 x 2160 @ 60 Hz
Max Transfer Distance
70.1 m
Status Indicators
Power, active, connection status
Features
3D support, 4K resolution support, 7.1 channel audio support, power over cable (PoC), HDR support, 4:4:4 chroma subsampling support, 36-bit True Colour support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support
Compliant Standards
HDCP 2.2, HDCP 1.4
Expansion / Connectivity
Interfaces
1 x DisplayPort (input) female ¦ 1 x HDMI (output) - Type A female ¦ 1 x DisplayPort (output) female ¦ 1 x network (input) - RJ-45 female ¦ 2 x network (output) - RJ-45 female ¦ 1 x TOSLINK (receiver) female
Miscellaneous
Included Accessories
4 power plug adapters
Cables Included
Power cable - 1.38 m
Mounting Kit
Included
Compliant Standards
DisplayPort 1.2a, CCC, GS, TUV, UL, cUL, FCC, RoHS, REACH
TAA Compliant
Yes
Power
Power Over Ethernet (PoE)
PoC
Power Device
External power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Dimensions & Weight
Dimensions (WxDxH) / Weight Details
Receiver: 11.5 cm x 6.24 cm x 2.7 cm / 450 g ¦ Transmitter: 11.5 cm x 6.24 cm x 2.7 cm / 450 g
Dimensions & Weight (Shipping)
Shipping Width
26.01 cm
Shipping Depth
16.41 cm
Shipping Height
5.51 cm
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 85% (non-condensing)
