EC55 ANDR 3GB/32GB SE4100 13MP MICRO SD GMS 2-PIN CONNECTOR RO
Manufacture#: EC55BK-11B112-A6
Checking delivery…
Product details
Data collection terminal
Android 10
32 GB
5" colour (720 x 1280)
Payment options available at checkout
Main features

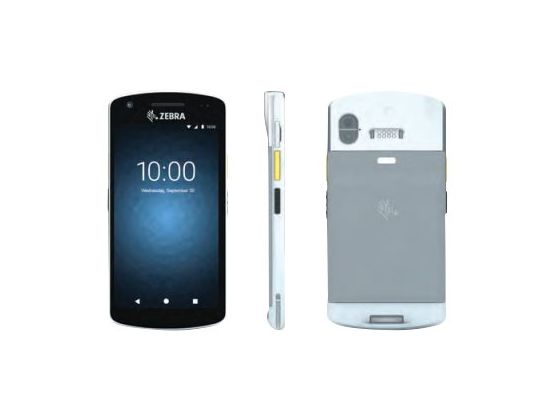

Zebra EC55
Data collection terminal
Android 10
32 GB
5" colour (720 x 1280)
rear camera + front camera
barcode reader
(2D imager)
USB host
microSD slot
Wi-Fi 5, NFC, Bluetooth
4G
Overview
The EC55 Wi-Fi/cellular individually assigned enterprise mobile computer with integrated scanner is Zebra's thinnest, lightest mobile computer yet. This device is always at your workers' fingertips, ready to work whether your workers are inside your facility or out in the field.
Product Description
Zebra EC55 - data collection terminal - Android 10 - 32 GB - 5" - 4G
Product Type
Data collection terminal
Operating System
Android 10
Display
5" colour LED backlight - 720 x 1280 - Multi-Touch
Processor
Qualcomm Snapdragon 660 (8-core) - 64-bit
Processor Clock Speed
2.2 GHz
Storage
32 GB
RAM
3 GB
Supported Flash Memory Cards
microSD, microSDHC, microSDXC
Cellular Technology
4G
Cellular Protocols
GSM, UMTS, FDD LTE, TDD LTE
Wireless Connectivity
802.11a/b/g/n/ac, NFC, Bluetooth 5.0 LE
Rear Camera
13 Megapixel focus: automatic
Front Camera
5 Megapixel
Navigation System
A-GPS/GPS/GLONASS/Gallileo/Beidou
Barcode Reader
Yes (2D imager)
RFID Specification
ISO 15693, Mifare, Felica, ISO 14443A, ISO 14443B
Features
USB host
Dimensions (WxDxH)
7.6 cm x 0.98 cm x 15.45 cm
Localisation
Rest of World
Manufacturer Warranty
1-year warranty
General
Product Type
Data collection terminal
Operating System
Android 10
Display
Type
5" colour - LED backlight
Resolution
720 x 1280
Touchscreen
Multi-Touch
Image Brightness
450 cd/m²
Features
Corning Gorilla glass, capacitive touch screen
Processor
Processor
Qualcomm Snapdragon 660
Processor Clock Speed
2.2 GHz
Number of Cores
8-core
64-bit Computing
Yes
Memory
Storage
32 GB
RAM
3 GB
Supported Flash Memory Cards
microSD, microSDHC, microSDXC
Max Supported Capacity
128 GB
Communications
Cellular Technology
4G
Cellular Protocols
GSM, UMTS, FDD LTE, TDD LTE
Band
LTE B1/B17/B19/B2/B20/B28/B3/B38/B39/B4/B40/B41/B5/B7/B8
Wireless Connectivity
802.11a/b/g/n/ac, NFC, Bluetooth 5.0 LE
Security Protocols & Features
LEAP, WEP, WPA, WPA2, TKIP, AES, EAP-TTLS, EAP-TLS, WPA2-Enterprise, PAP, PEAPv0, PEAPv1, EAP-GTC, EAP-MSCHAPv2, CCKM, EAP-MSCHAP, EAP-PWD, WPA-Enterprise
Rear Camera
Sensor Resolution
13 Megapixel
Focus Adjustment
Automatic
Lens Aperture
F/2.0
Light Source
LED flash
Front Camera
Sensor Resolution
5 Megapixel
Lens Aperture
F/2.0
Navigation System
Receiver
A-GPS/GPS/GLONASS/Gallileo/Beidou
Multimedia
Audio
3-microphone array, speaker
Input Device
Type
Touch-screen
Barcodes
Barcode Reader
Yes
Scan Element Type
2D imager
RFID
RFID Specification
ISO 15693, Mifare, Felica, ISO 14443A, ISO 14443B
Software
Preloaded Software
Google Mobile Services
Expansion and Connectivity
Expansion Slots
1 x Nano-SIM card ¦ 1 x microSDXC
Interfaces
1 x 2 pin connector ¦ 1 x USB-C
USB Host
Yes
Battery
Capacity
3060 mAh
Miscellaneous
Sensors
Ambient light sensor, proximity sensor, 3-axis gyro sensor, magnetometer, 3-axis accelerometer
Features
Audible alarm, Interactive Sensor Technology (IST), LED indicator, drop-resistant, USB On-The-Go, push-to-talk speaker, vibration-resistant, SE4100 imager, ESD protection up to 8 kV (direct), ESD protection up to 15 kV (air)
Vibrating Alert
Yes
Compliant Standards
Bluetooth Class 2, MIL-STD 810G, IP67, REACH 2006/1907, IEEE 802.11r, RoHS 2011/65/EU Amendment 2015/863
Localisation
Rest of World
Dimensions & Weight
Width
7.6 cm
Depth
0.98 cm
Height
15.45 cm
Manufacturer Warranty
Service & Support
Limited warranty - parts and labour - 1 year
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
