1594L 15.6IN WIDE LCD OPE FRAME FHD HDMI VGA DISPL. PORT PCAP 1
Checking delivery…
Product details
LCD monitor
15.6"
open frame
touchscreen
Payment options available at checkout
Main features
Elo 1594L
LCD monitor
15.6"
open frame
touchscreen
1920 x 1080 Full HD (1080p)
350 cd/m²
800:1
25 ms
HDMI, VGA, DisplayPort
black
Overview

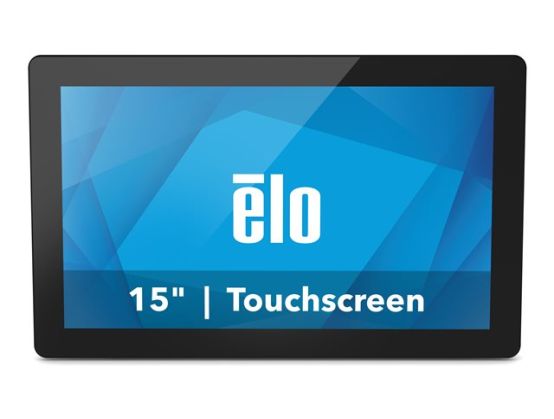

The Elo 1594L 15.6-inch FHD open-frame LCD touchscreen showcases a sleek and slim design, complemented by its minimalistic outer dimensions. Equipped with a cutting-edge, energy-efficient LED backlight, it not only consumes less power but also dissipates minimal heat. This compact display seamlessly integrates Elo's industry-leading TouchPro PCAP technology, providing stable performance, crystal-clear image quality, and optimal light transmission for precise touch interactions. With its captivating display, the Elo 1594L is well suited for integration into self-service and HMI applications in retail stores, restaurants, gaming and casinos, amusement parks, industrial automation and more.
Product Description
Elo 1594L - LCD monitor - Full HD (1080p) - 15.6"
Device Type
LCD monitor - 15.6" - touchscreen
Features
Touch-screen, remote control
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080
Brightness
350 cd/m²
Contrast Ratio
800:1
Response Time
25 ms (typical)
Colour Support
16.7 million colours
Input Connectors
HDMI, VGA, DisplayPort
Colour
Black
Dimensions (WxDxH)
39.47 cm x 24.2 cm x 4.34 cm
Weight
3.02 kg
Compliant Standards
UL, FCC, RCM, cUL, IC, CCC, TUV, KCC, CoC, BSMI, CB, EAC, RoHS, China RoHS, WEEE, UL62368, IK07, Commercial Grade
Manufacturer Warranty
3-year warranty
General
Display Type
LCD monitor / TFT active matrix
Diagonal Size
15.6"
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080
Brightness
350 cd/m²
Contrast Ratio
800:1
Colour Support
16.7 million colours
Response Time
25 ms (typical)
Vertical Refresh Rate
50 - 75 Hz
Horizontal Refresh Rate
30 - 82 kHz
Horizontal Viewing Angle
178
Vertical Viewing Angle
178
OSD Languages
English, French, Italian, German, Spanish, Chinese (simplified), Japanese, Chinese (traditional)
Features
Remote OSD, Projected Capacitive Touch (P-CAP) technology
Colour
Black
Dimensions (WxDxH)
39.47 cm x 24.2 cm x 4.34 cm
Weight
3.02 kg
Input
Type
Touch-screen, remote control - touchscreen
Movement Detection Technology
Projected capacitive
Connectivity
Interfaces
HDMI (Type A) ¦ VGA (DB-15) ¦ DisplayPort 1.1a ¦ USB 2.0
Mechanical
VESA Mounting Interface
75 x 75 mm
Miscellaneous
Included Accessories
Flush mount brackets, screws
Cables Included
1 x HDMI cable ¦ 1 x USB touch cable ¦ 1 x VGA cable
Mounting Kit
Included
MTBF
50,000 hours
Compliant Standards
UL, FCC, RCM, cUL, IC, CCC, TUV, KCC, CoC, BSMI, CB, EAC, RoHS, China RoHS, WEEE, UL62368, IK07, Commercial Grade
Power
Power Consumption (Typical)
13.23 Watt
Power Consumption Sleep
0.48 Watt
Power Consumption (Off Mode)
0.22 Watt
Dimensions & Weight (Shipping)
Shipping Width
47 cm
Shipping Depth
33.1 cm
Shipping Height
17.5 cm
Shipping Weight
4.62 kg
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80%
