ELO

ESY15I3-2UWA-1-SQ-MT-8G-1S-WN-6 4-BK I3-1215UL W10IOT-E 8/128GB

Name: ESY15I3-2UWA-1-SQ-MT-8G-1S-WN-6 4-BK I3-1215UL W10IOT-E 8/128GB
Brand: ELO
SKU: 1TDSPMON-037857
Price: 1710 GBP
Availability: OutOfStock

SKU

1TDSPMON-037857

Manufacture#: E700960

Be the first to review this product

£1425

£1710.00 inc VAT

Order by 15:00 and receive your order on Monday 26 May

Product details

All-in-one Core i3 i3-1215UL / up to 4.4 GHz
RAM 8 GB
SSD 128 GB
NVMe

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

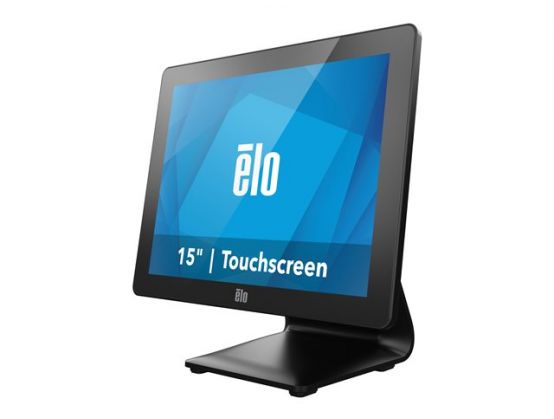

Elo I-Series 3
All-in-one Core i3 i3-1215UL / up to 4.4 GHz
RAM 8 GB
SSD 128 GB
NVMe
UHD Graphics
Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
Win 10 IoT Enterprise 2021 LTSC
monitor: LED 15" 1024 x 768 (XGA) @ 60 Hz touchscreen
black

Overview

Elo's 4:3 I-Series 3 with Intel Touchscreen Computer delivers reliable, enterprise-grade security and performance powered by advanced processors. Designed with a sleek and durable fixed tablet form factor, the I-Series offers models that support Windows, ChromeOS Flex and Linux. The I-Series offers a modular platform with connectivity to support your accessories including a customer facing display, payment reader, printer, cash drawer, barcode scanner, scale and more. The I-Series with Intel delivers the durability needed to survive continuous public use.

Specification

Product Description Elo I-Series 3 - all-in-one Core i3 i3-1215UL 1.2 GHz - 8 GB - SSD 128 GB - LED 15"

Type Personal computer - all-in-one

Localisation Region: Worldwide

Processor Intel Core i3 (12th Gen) i3-1215UL / 1.2 GHz (up to 4.4 GHz, (6-core)

Processor Main Features Intel Turbo Boost Technology 2

Cache Memory 10 MB

Cache Per Processor 10 MB

RAM 8 GB (installed) / 32 GB (max) - DDR5 SDRAM

Hard Drive SSD 128 GB - PCI Express - M.2 - NVM Express (NVMe)

Optical Storage No optical drive

Monitor 15" - LED - 1024 x 768 (XGA) @ 60 Hz - 4:3 - touchscreen

Graphics Controller Intel UHD Graphics

Audio Output Stereo

Networking 802.11a, Wi-Fi 5, 802.11b/g/n, 1GbE, Bluetooth 5.2, Wi-Fi 6

Power (50/60 Hz)

OS Provided Windows 10 IoT Enterprise 2021 LTSC

Colour Black

Dimensions (WxDxH) 35.95 cm x 19.75 cm x 35.6 cm

Weight 6.7 kg

Environmental Standards ENERGY STAR Qualified

Manufacturer Warranty Limited warranty - 3 years

General

Type Personal computer

Product Form Factor All-in-one

Embedded Security Trusted Platform Module (TPM 2.0) Security Chip

Colour Black

Localisation Region: Worldwide

Processor / Chipset

CPU Intel Core i3 (12th Gen) i3-1215UL

Clock Speed 1.2 GHz

Max Turbo Speed 4.4 GHz (P-core) / 2.5 GHz (E-core)

Number of Cores 6-core

CPU Qty 1

Max CPU Qty 1

Processor Main Features Intel Turbo Boost Technology 2

Cache Memory

Installed Size 10 MB

Cache Per Processor 10 MB

RAM

Installed Size 8 GB (installed) / 32 GB (max)

Technology DDR5 SDRAM

Effective Memory Speed 4800 MHz

Rated Memory Speed 4800 MHz

Form Factor SO-DIMM 262-pin

Slots 2 (Total) / 1 (empty)

Configuration Features 1 x 8 GB

Hard Drive

Type SSD - M.2

Capacity 1 x 128 GB

Interface Type PCI Express

SSD Endurance 80 TB

Features NVM Express (NVMe)

Optical Storage

Type No optical drive

Monitor

Monitor Type LED

Touchscreen Yes (10-point multi-touch)

Diagonal Size 15"

Native Resolution 1024 x 768 (XGA)

V-Sync Rate at Max Res. 60 Hz

Image Aspect Ratio 4:3

Horizontal Viewing Angle +80 / -80

Vertical Viewing Angle +80 / -80

Response Time 23 ms

Image Brightness 400 cd/m²

Image Contrast Ratio 800:1

Monitor Features TouchPro Pro Projected Capacitive (PCAP) technology, anti-glare, Zero-Bezel Design, 262144 colours

Graphics Controller

Graphics Processor Intel UHD Graphics

Audio Output

Sound Output Mode Stereo

Speakers Included 2 x right / left channel

Networking

Wireless LAN Supported Yes

Data Link Protocol IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)

Expansion / Connectivity

Interfaces 1 x headphones/microphone ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 ¦ 4 x USB 2.0 - micro-USB ¦ 1 x PoweredUSB (24 V) ¦ 2 x PoweredUSB (12 V) ¦ 1 x serial - RJ-50 (powered) ¦ 1 x cash drawer (12V/24 V) ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging)

Miscellaneous

Included Accessories Mount screw, cable tie, stand

Cables Included RJ-50 to DB-9 cable

Theft/Intrusion Protection Security lock slot (cable lock sold separately)

Security Slot Type Kensington security slot

VESA Mounting Interface 75 x 75 mm, VESA

Compliant Standards cUL, UL, TUV, RCM, UKCA, CB, Argentina S-Mark, ANATEL, VCCI, MIC, Mexico NOM, CoC

Power

Device Type Power adapter

Voltage Required AC 100/240 V (50/60 Hz)

Power Provided 180 Watt

Power Consumption Operational 39 Watt

Operating System / Software

OS Provided Windows 10 IoT Enterprise 2021 LTSC

Sustainability Information

ENERGY STAR Certified Yes

ENERGY STAR Version 8.0

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Dimensions & Weight

Width 35.95 cm

Depth 19.75 cm

Height 35.6 cm

Weight 6.7 kg

Dimensions & Weight (Shipping)

Shipping Width 49.7 cm

Shipping Depth 34.5 cm

Shipping Height 48.7 cm

Shipping Weight 7.9 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 35 °C

Humidity Range Operating 20 - 80% (non-condensing)
