Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
no OS
monitor: LED 21.5" 1920 x 1080 (Full HD) @ 60 Hz touchscreen
black
Overview

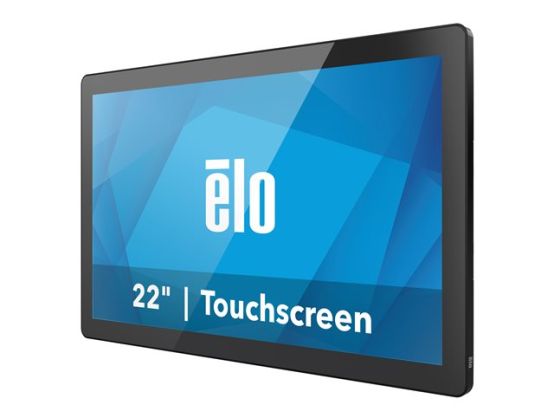

Elo's I-Series 3 with Intel AiO Interactive Display delivers reliable, enterprise-grade security and performance powered by advanced processors. Designed with a sleek and durable fixed tablet form factor, the I-Series offers models that support Windows, ChromeOS Flex and Linux. The I-Series offers a modular platform designed with the durability needed to survive continuous public use.
Max Turbo Speed4.4 GHz (P-core) / 2.5 GHz (E-core)
Number of Cores10-core
CPU Qty1
Max CPU Qty1
Processor Main FeaturesIntel Turbo Boost Technology 2
Cache Memory
Installed Size12 MB
Cache Per Processor12 MB
RAM
Installed Size8 GB (installed) / 32 GB (max)
TechnologyDDR5 SDRAM
Effective Memory Speed4800 MHz
Rated Memory Speed4800 MHz
Form FactorSO-DIMM 262-pin
Slots2 (Total) / 1 (empty)
Configuration Features1 x 8 GB
Hard Drive
TypeSSD - M.2
Capacity1 x 128 GB
Interface TypePCI Express
SSD Endurance80 TB
FeaturesNVM Express (NVMe)
Optical Storage
TypeNo optical drive
Monitor
Monitor TypeLED
TouchscreenYes (10-point multi-touch)
Diagonal Size21.5"
Native Resolution1920 x 1080 (Full HD)
V-Sync Rate at Max Res.60 Hz
Widescreen DisplayYes
Image Aspect Ratio16:9
Horizontal Viewing Angle+89 / -89
Vertical Viewing Angle+89 / -89
Response Time14 ms
Image Brightness250 cd/m²
Image Contrast Ratio1000:1
Monitor FeaturesTouchPro Pro Projected Capacitive (PCAP) technology, 16.7 million colour depth
Graphics Controller
Graphics ProcessorIntel Iris Xe Graphics
Audio Output
Sound Output ModeStereo
Speakers Included2 x right / left channel
Networking
Wireless LAN SupportedYes
Data Link ProtocolIEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
FeaturesIntel Active Management Technology (AMT)
Expansion / Connectivity
Interfaces1 x headphones/microphone ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 ¦ 4 x USB 2.0 - micro-USB ¦ 1 x PoweredUSB (24 V) ¦ 2 x PoweredUSB (12 V) ¦ 1 x serial - RJ-50 (powered) ¦ 1 x cash drawer (12V/24 V) ¦ 1 x DisplayPort/USB-C 3.0 (27 Watt charging)
Miscellaneous
Included AccessoriesMount screw, cable tie
Cables IncludedRJ-50 to DB-9 cable
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately)
