ESY15I1 4.0 STANDARD 15IN QC660 4GB 64GB A10 GMS NO STD WHITE
Checking delivery…
Product details
Standard
all-in-one
1 x Snapdragon 660
RAM 4 GB
Payment options available at checkout
Main features
Elo I-Series 4.0
Standard
all-in-one
1 x Snapdragon 660
RAM 4 GB
flash 64 GB
GigE
WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0
Android 10
monitor: LED 15.6" 1920 x 1080 (Full HD) @ 60 Hz touchscreen
white
Overview
The I-Series has been used across the globe for everything from self-service, point-of-sale and price checkers to industrial controls and visitor management. Elo's I-Series delivers a powerful, commercial-grade interactive platform complete with a Full HD 10-touch display and enhanced CPU performance.
Product Description

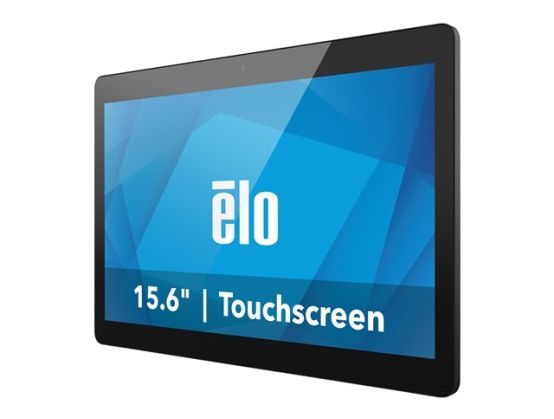

Elo I-Series 4.0 - Standard - all-in-one - Snapdragon 660 - 4 GB - flash 64 GB - LED 15.6"
Type
Point of sale terminal - all-in-one
Processor
1 x Qualcomm Snapdragon 660 (8-core)
RAM
4 GB
Hard Drive
Flash 64 GB
Optical Storage
No optical drive
Card Reader
Yes
Monitor
15.6" - LED - 1920 x 1080 (Full HD) @ 60 Hz - 16:9 - touchscreen
Camera
Yes
Audio Output
Stereo
Networking
GigE, 802.11a, 802.11b/g/n, 802.11ac, Bluetooth 5.0
Power
(50/60 Hz)
OS Provided
Android 10
Colour
White
Dimensions (WxDxH)
37.77 cm x 2.23 cm x 24.97 cm
Weight
1.8 kg
Manufacturer Warranty
Limited warranty - 2 years
General
Type
Point of sale terminal
Product Form Factor
All-in-one
Colour
White
Processor / Chipset
CPU
Qualcomm Snapdragon 660
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
1
Hard Drive
Type
Flash
Capacity
1 x 64 GB
Optical Storage
Type
No optical drive
Card Reader
Type
Card reader
Supported Flash Memory Cards
microSD
Monitor
Monitor Type
LED
Touchscreen
Yes (10-point multi-touch)
Diagonal Size
15.6"
Native Resolution
1920 x 1080 (Full HD)
V-Sync Rate at Max Res.
60 Hz
Widescreen Display
Yes
Image Aspect Ratio
16:9
Horizontal Viewing Angle
+89 / -89
Vertical Viewing Angle
+89 / -89
Response Time
25 ms
Image Brightness
258 cd/m²
Image Contrast Ratio
700:1
Monitor Features
TouchPro Pro Projected Capacitive (PCAP) technology
Audio Output
Sound Output Mode
Stereo
Camera
Camera
Yes
Resolution (MP)
8 Megapixel
Resolution
1920 x 1080
Features
Autofocus
Audio Input
Type
Two microphones
Networking
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Expansion / Connectivity
Interfaces
1 x USB 3.0 (900 mA) ¦ 1 x USB-C ¦ 1 x GPIO ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 - micro-USB (support for 1.2 A on one port and 500 mA for the remaining three ports)
Miscellaneous
Included Accessories
Power adapter, screw set
VESA Mounting Interface
75 mm, 100 mm, VESA
Compliant Standards
UL, VCCI, cUL, CB, IC, MIC, FCC, RCM
Power
Device Type
Power adapter
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
11 Watt
Power Consumption Stand by
0.4 Watt
Power Consumption Sleep
4.4 Watt
Operating System / Software
OS Provided
Android 10
Software
Google Mobile Services
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Dimensions & Weight
Width
37.77 cm
Depth
2.23 cm
Height
24.97 cm
Weight
1.8 kg
Dimensions & Weight (Shipping)
Shipping Width
45 cm
Shipping Depth
16.5 cm
Shipping Height
31 cm
Shipping Weight
3.5 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80%
