ELO PAYPONT P POS I5-8500T 15.6IN 8GB/128 SSD 2D 5X6 CASH
£1773 .81
£2128.57 inc VAT
Checking delivery…
Product details
All-in-one
1 x Core i5 8500T / 2.1 GHz
RAM 8 GB
SSD 128 GB
Payment options available at checkout
Main features
Elo PayPoint Plus
All-in-one
1 x Core i5 8500T / 2.1 GHz
RAM 8 GB
SSD 128 GB
UHD Graphics 630
WLAN: 802.11a/b/g/n/ac, Bluetooth 5.0
no OS
monitor: LED 15.6" 1920 x 1080 (Full HD) @ 60 Hz touchscreen
white
Overview

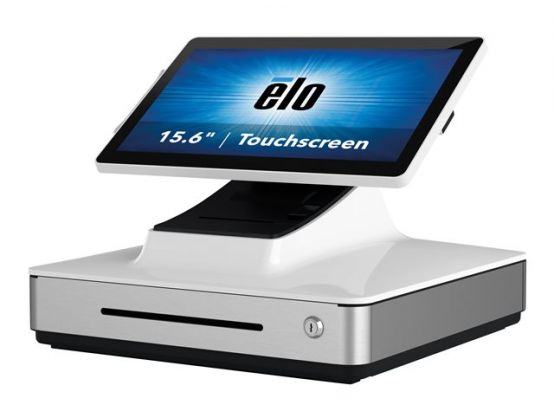

PayPoint Plus for Windows is a new point-of-sale (POS) solution that delivers unmatched style and function with the power of Intel Coffee Lake Core i5 processing. PayPoint Plus provides everything a merchant needs including a 15.6" Windows-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from Magtek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature touchscreen to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
Product Description
Elo PayPoint Plus - all-in-one - Core i5 8500T 2.1 GHz - 8 GB - SSD 128 GB - LED 15.6"
Type
Point of sale terminal - all-in-one
Localisation
Region: United States
Processor
1 x Intel Core i5 (8th Gen) 8500T / 2.1 GHz (3.5 GHz) (6-core)
Processor Main Features
Intel Turbo Boost Technology 2
Cache Memory
9 MB
Cache Per Processor
9 MB
RAM
8 GB (installed) / 32 GB (max) - DDR4 SDRAM
Hard Drive
SSD 128 GB - M.2
Monitor
15.6" - LED - 1920 x 1080 (Full HD) @ 60 Hz - 16:9 - touchscreen
Printer
Receipt printer - thermal transfer
Graphics Controller
Intel UHD Graphics 630
Networking
10Mb LAN, 802.11a, 802.11b/g/n, 802.11ac, Bluetooth 5.0
Battery
Lithium Ion
Power
AC 100 - 240 V (50 - 60 Hz)
OS Provided
No operating system
Colour
White
Dimensions (WxDxH)
42 cm x 41.1 cm x 32.3 cm
Weight
10.2 kg
Manufacturer Warranty
Limited warranty - 3 years
General
Type
Point of sale terminal
Product Form Factor
All-in-one
Built-in Devices
Speaker, LCD Customer Display, cash drawer, 2D barcode reader
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Colour
White
Localisation
Region: United States
Processor / Chipset
CPU
Intel Core i5 (8th Gen) 8500T
Clock Speed
2.1 GHz
Max Turbo Speed
3.5 GHz
Number of Cores
6-core
CPU Qty
1
Processor Main Features
Intel Turbo Boost Technology 2
Cache Memory
Installed Size
9 MB
Cache Per Processor
9 MB
RAM
Installed Size
8 GB / 32 GB (max)
Technology
DDR4 SDRAM
Effective Memory Speed
2666 MHz
Rated Memory Speed
2666 MHz
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 1 (empty)
Configuration Features
1 x 8 GB
Hard Drive
Type
SSD - M.2
Capacity
1 x 128 GB
Monitor
Monitor Type
LED
Touchscreen
Yes (5-point multi-touch)
Diagonal Size
15.6"
Native Resolution
1920 x 1080 (Full HD)
V-Sync Rate at Max Res.
60 Hz
Widescreen Display
Yes
Image Aspect Ratio
16:9
Horizontal Viewing Angle
+80 / -80
Vertical Viewing Angle
+80 / -80
Response Time
30 ms
Image Brightness
300 cd/m²
Image Contrast Ratio
800:1
Monitor Features
Projected Capacitive Touch (P-CAP) technology
Graphics Controller
Graphics Processor
Intel UHD Graphics 630
Input Device
Type
Bar-code reader, Magnetic Stripe Reader
Networking
Wireless LAN Supported
Yes
Data Link Protocol
Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Printer
Type
Receipt printer
Technology
Thermal transfer
Max Print Speed
250 mm/sec
Media Size
Roll (8 cm)
Expansion / Connectivity
Interfaces
4 x USB 2.0 ¦ 2 x serial - RJ-45 ¦ 1 x Micro-HDMI ¦ 1 x cash drawer - RJ-12 ¦ 1 x LAN ¦ 1 x PoweredUSB (12 V)
Miscellaneous
Included Accessories
2 cash drawer keys, customer facing display, receipt paper roll
Cables Included
Serial cable
Compliant Standards
UL, VCCI, cUL, CB, CCC, IC, FCC, SRRC, JRF, RED
Battery
Technology
Lithium Ion
Power
Device Type
Power supply
Voltage Required
AC 100 - 240 V (50 - 60 Hz)
Power Consumption Operational
51.86 Watt
Operating System / Software
OS Provided
No operating system
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Width
42 cm
Depth
41.1 cm
Height
32.3 cm
Weight
10.2 kg
Dimensions & Weight (Shipping)
Shipping Width
51.8 cm
Shipping Depth
53.8 cm
Shipping Height
38.9 cm
Shipping Weight
13.5 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80% (non-condensing)
