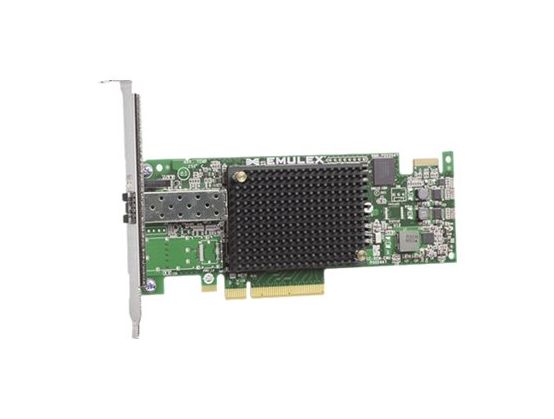

Emulex LightPulse LPe16000 - Customer Install - host bus adapter - PCIe 2.0 x8 low profile - 16Gb Fibre Channel x 1 - for PowerEdge C4130, FC630, FC830, R620, R715, R720, R720xd, R815, R820, R910

Name: Emulex LightPulse LPe16000 - Customer Install - host bus adapter - PCIe 2.0 x8 low profile - 16Gb Fibre Channel x 1 - for PowerEdge C4130, FC630, FC830, R620, R715, R720, R720xd, R815, R820, R910
Brand: Emulex
SKU: 1TNETNIC-004503
Price: 1042.49 GBP
Availability: OutOfStock

SKU

1TNETNIC-004503

Manufacture#: 406-BBGY

£868.74

£1042.49 inc VAT

Checking delivery…

Product details

Customer Install
host bus adapter
PCIe 2.0 x8 low profile
16Gb Fibre Channel x 1

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Emulex LightPulse LPe16000
Customer Install
host bus adapter
PCIe 2.0 x8 low profile
16Gb Fibre Channel x 1
for PowerEdge C4130, FC630, FC830, R620, R715, R720, R720xd, R815, R820, R910

Overview

Emulex LPe16000B, Single Port 16Gb Fibre Channel HBA, Low Profile.

Specification

Product Description Emulex LightPulse LPe16000 - Customer Install - host bus adapter - PCIe 2.0 x8 - 16Gb Fibre Channel x 1

Device Type Host bus adapter

Form Factor Plug-in card - low profile

Interface (Bus) Type PCI Express 2.0 x8

PCI Specification Revision PCI 2.0

Ports 16Gb Fibre Channel x 1

Dimensions (WxDxH) 16.764 cm x 6.891 cm

Data Link Protocol 16Gb Fibre Channel (SW)

Max Transfer Distance 125 m

Data Transfer Rate 14.025 Gbps

System Requirements Linux, Microsoft Windows, VMware ESXi, Oracle Solaris

Designed For PowerEdge C4130, FC630, FC830, R620, R715, R720, R720xd, R815, R820, R910

General

Device Type Host bus adapter

Form Factor Plug-in card - low profile

Interface (Bus) Type PCI Express 2.0 x8

PCI Specification Revision PCI 2.0

Networking

Ports 16Gb Fibre Channel x 1

Connectivity Technology Wired

Data Link Protocol 16Gb Fibre Channel (Short Wave)

Fibre Channel FC-AL, FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-Tape, FC-SP, FCP-4, FCP, FCP-2, FC-PI-2, FC-FS-2, FC-GS-5, FC-PI-4, FC-GS-6, FC-HBA, FC-PI-5, FC-LS-2, FC-SP-2, FC-MJS, FC-SB-4

Data Transfer Rate 14.025 Gbps

Max Transfer Distance 125 m

Features Full duplex capability, auto-negotiation, manageable, firmware upgradable

Expansion / Connectivity

Interfaces 1 x 16Gb Fibre Channel (Short Wave) - LC multi-mode - x 2

Miscellaneous

Included Accessories Low-profile bracket

Compliant Standards C-Tick, CISPR 22 Class A, RRL, VCCI Class A ITE, EN55024, EN55022 Class A, CISPR 22, CB, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, FCC Part 15 A, TUV Bauart, BSMI Class A, KCC Class A

Software / System Requirements

OS Required Linux, Microsoft Windows, VMware ESXi, Oracle Solaris

Dimensions & Weight

Depth 16.764 cm

Height 6.891 cm

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 55 °C

Humidity Range Operating 5 - 95% (non-condensing)

Compatibility Information

Designed For Dell PowerEdge C4130, FC630, FC830, R620, R715, R720, R720xd, R815, R820, R910
