monitor: LED 15.6" 1920 x 1080 (Full HD) @ 60 Hz touchscreen
black
Overview

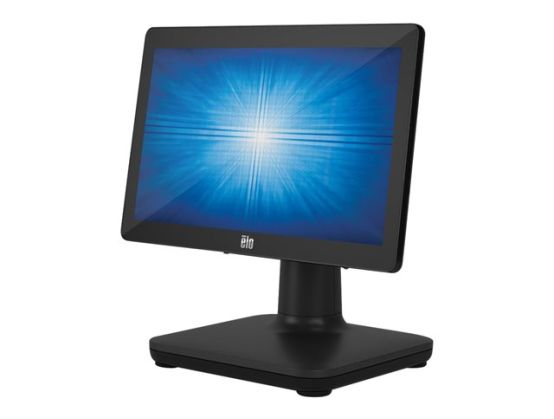

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15.6-inch touchscreen display, choice of Intel's 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale.
Processor Main FeaturesIntel Turbo Boost Technology 2, Intel Smart Cache
Chipset TypeIntel H310
Cache Memory
Installed Size6 MB
Cache Per Processor6 MB
RAM
Installed Size8 GB (installed) / 32 GB (max)
TechnologyDDR4 SDRAM
Effective Memory Speed2400 MHz
Rated Memory Speed2666 MHz
Form FactorSO-DIMM 260-pin
Slots2 (Total) / 1 (empty)
Configuration Features1 x 8 GB
Hard Drive
TypeSSD - M.2
Capacity1 x 128 GB
Interface TypeSATA
SSD Endurance80 TB
Optical Storage
TypeNo optical drive
Monitor
Monitor TypeLED
TouchscreenYes (10-point multi-touch)
Diagonal Size15.6"
Native Resolution1920 x 1080 (Full HD)
V-Sync Rate at Max Res.60 Hz
Widescreen DisplayYes
Image Aspect Ratio16:9
Horizontal Viewing Angle160
Vertical Viewing Angle160
Response Time25 ms
Image Brightness300 cd/m²
Image Contrast Ratio700:1
Monitor FeaturesTouchPro Pro Projected Capacitive (PCAP) technology
Graphics Controller
Graphics ProcessorIntel UHD Graphics 630
Audio Output
Sound Output ModeStereo
Speakers Included2 x right / left channel
Networking
Wireless LAN SupportedYes
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0
Expansion / Connectivity
Interfaces3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 4 x USB 2.0 - micro-USB ¦ 2 x PoweredUSB (12 V) ¦ 1 x PoweredUSB (24 V) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x cash drawer ¦ 1 x headphones ¦ 2 x serial - RJ-45 ¦ 1 x USB-C (27 Watt charging)
Miscellaneous
Cables IncludedRJ-45 to DB-9 cable
VESA Mounting Interface75 mm, VESA
Compliant StandardsUL, TUV, VCCI, C-Tick, cUL, CB, CCC, FCC, S Mark, RCM, Mexico NOM
Power
Device TypePower adapter
Installed Qty1
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Provided180 Watt
Power Consumption Operational67 Watt
Operating System / Software
OS ProvidedNo operating system
Sustainability Information
ENERGY STAR CertifiedYes
ENERGY STAR Version7.1
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Dimensions & Weight
Dimensions & Weight Details38.62 cm - 7.33 cm - 24.89 cm - 2.9 kg - without stand ¦ 38.62 cm - 22.12 cm - 36.93 cm - 4.9 kg - with stand
