With powerful media handling and innovative smart features to ensure a high level of data integrity, the WorkForce DS-770II is geared towards highly-efficient and simple integration into an organisation's workflow. With a 100-page ADF and the ability to scan at up to 45ppm/90ipm, it offers a wide range of media handling options that enable you to rapidly capture, index, store and share business documents.
An industry first with Slow Mode: Scan crumpled, long or fragile documents without increasing file sizes
Active Separation Roller System: Prevents tedious double feeds ensuring every piece of paper gets scanned
Optional flatbed scanner conversion kit: Enables scanning of items from stamps to passports, books and more
Auto Scan Mode: Quickly process physical documents in manageable amounts
Intelligent features improve efficiency, accuracy and data reliabilityWith an industry-first slow mode for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.Highly versatileThe optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.Flexible connectivityHigh-speed USB 3.0 with TWAIN, WIA and ISIS drivers for enhanced compatibility with Document Management Systems.Image enhancement and document management softwareEpson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro is the easy to use solution for capturing and storing electronic documents at the touch of a button.

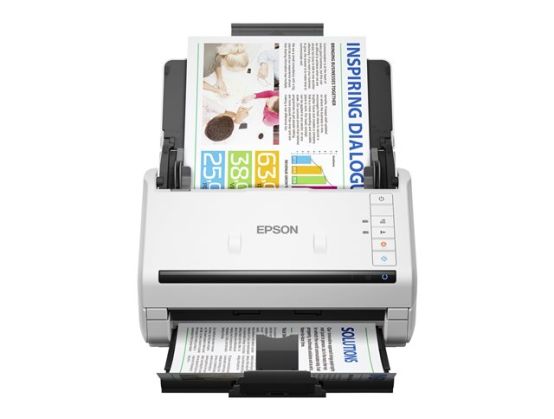

Product DescriptionEpson DS-770 II - document scanner - desktop - USB 3.0
Device TypeDocument scanner - desktop
Interface TypeUSB 3.0
Scanning Sensor TypeContact Image Sensor (CIS)
Additional FunctionsScan to print, scan to FTP, scan to folder, scan to SharePoint, scan to email
Max Supported Document Size215.9 x 6096 mm
Grayscale / Color Depth30-bit colour
Grayscale / Color Depth (External)24-bit (16.7 million colours)
Optical Resolution600 dpi x 600 dpi
Max Document Scan Speed45 ppm (mono) / 45 ppm (colour)
Max Document Size215.9 mm x 6096 mm
Automatic DuplexingYes
Supported Document TypePlain paper, business card, plastic card
Document Feeder TypeAutomatic
Document Storage Capacity100 sheets
Duty Cycle7000 scans per day
System RequirementsMicrosoft Windows XP Professional x64 Edition, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Apple MacOS X 10.7.x, Apple MacOS X 10.6.8, Citrix XenApp 5, Citrix XenApp 6, Windows 8 (32/64 bits), Apple MacOS X 10.8.x, Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2, Apple MacOS X 10.9.x, Microsoft Windows RT 8, Windows 10, Citrix XenApp 7.6 or later
Dimensions (WxDxH)29.6 cm x 16.9 cm x 17.6 cm
Weight3.7 kg
Manufacturer Warranty1-year warranty
Extended Specification
General
TypeDocument scanner - desktop
Interface TypeUSB 3.0
Additional FunctionsScan to print, scan to FTP, scan to folder, scan to SharePoint, scan to email
Max Supported Document Size215.9 x 6096 mm
Scanner
Grayscale Depth30-bit colour
Grayscale Depth (External)24-bit (16.7 million colours)
OS RequiredMicrosoft Windows XP Professional x64 Edition, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Apple MacOS X 10.7.x, Apple MacOS X 10.6.8, Citrix XenApp 5, Citrix XenApp 6, Windows 8 (32/64 bits), Apple MacOS X 10.8.x, Microsoft Windows Server 2012 x64 Edition, Windows 8.1 (32/64 bits), Microsoft Windows Server 2012 R2, Apple MacOS X 10.9.x, Microsoft Windows RT 8, Windows 10, Citrix XenApp 7.6 or later
Dimensions & Weight
Width29.6 cm
Depth16.9 cm
Height17.6 cm
Weight3.7 kg
Manufacturer Warranty
Service & SupportLimited warranty - 1 year - on-site
