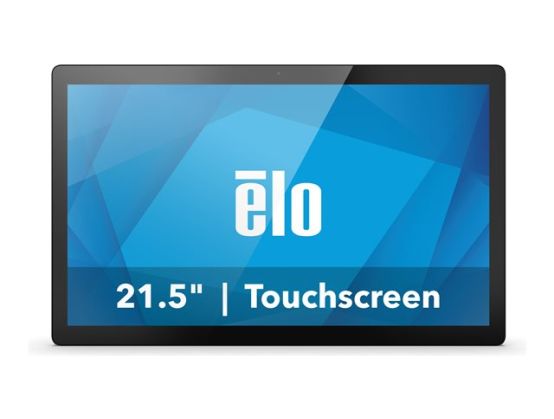

monitor: LED 21.5" 1920 x 1080 (Full HD) @ 60 Hz touchscreen
black
Overview
Elo's I-Series delivers a powerful, commercial-grade interactive platform complete with a Full HD 10-touch display, flexible Android 12 OS and enhaced CPU performance with your choice of Qualcomm or Rockchip processor options. Available in 10-, 15- and 22-inch sizes, the I-Series can be used for almost everything - from self-service and point-of-sale to digital signage and industrial controls.
Product DescriptionElo I-Series 4.0 - Value - all-in-one RK3399 - 4 GB 32 GB - LED 21.5"
TypePoint of sale terminal - all-in-one
Processor1 x Rockchip RK3399
RAM4 GB
Hard Drive32 GB
Optical StorageNo optical drive
Card ReaderYes
Monitor21.5" - LED - 1920 x 1080 (Full HD) @ 60 Hz - 16:9 - touchscreen
CameraYes
Networking802.11a, Wi-Fi 5, 802.11b/g/n, Bluetooth 5.0, 1GbE
Power(50/60 Hz)
OS ProvidedAndroid 12
Software IncludedGoogle Mobile Services
ColourBlack
Dimensions (WxDxH)52.48 cm x 2.97 cm x 32.48 cm
Weight4.3 kg
Manufacturer WarrantyLimited warranty - 2 years
Extended Specification
General
TypePoint of sale terminal
Product Form FactorAll-in-one
ColourBlack
Processor / Chipset
CPURockchip RK3399
CPU Qty1
Max CPU Qty1
RAM
Installed Size4 GB
Hard Drive
Capacity1 x 32 GB
Optical Storage
TypeNo optical drive
Card Reader
TypeCard reader
Supported Flash Memory CardsmicroSD
Monitor
Monitor TypeLED
TouchscreenYes (10-point multi-touch)
Diagonal Size21.5"
Native Resolution1920 x 1080 (Full HD)
V-Sync Rate at Max Res.60 Hz
Widescreen DisplayYes
Image Aspect Ratio16:9
Horizontal Viewing Angle+85 / -85
Vertical Viewing Angle+80 / -80
Response Time5 ms
Image Brightness250 cd/m²
Image Contrast Ratio1000:1
Monitor FeaturesTouchPro Pro Projected Capacitive (PCAP) technology
Audio Output
Speakers Included2
Camera
CameraYes
Resolution (MP)5 Megapixel
Resolution1920 x 1080
FeaturesAutofocus, 30 frames per second
Audio Input
TypeMicrophone
Networking
Wireless LAN SupportedYes
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.0, Ethernet, Gigabit Ethernet, Fast Ethernet
Expansion / Connectivity
Interfaces1 x USB 3.0 (900 mA) ¦ 1 x USB-C ¦ 1 x GPIO ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 - micro-USB (support for 1.2 A on one port and 500 mA for the remaining three ports)
