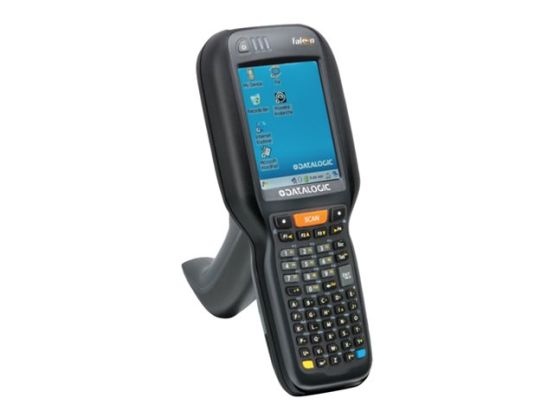

The Falcon X4 mobile computer is ideal for retail, logistics, and many other applications requiring an extremely rugged and reliable mobile computer with keyboard.
Operating SystemMicrosoft Windows Embedded Compact 7
Display3.5" colour TFT - 240 x 320
ProcessorTexas Instruments OMAP 4
Processor Clock Speed1 GHz
Storage8 GB
RAM1 GB
Supported Flash Memory CardsmicroSD, microSDHC
Wireless Connectivity802.11a/b/g/n, Bluetooth 2.1 EDR
Barcode ReaderYes (2D imager)
BarcodesGS1 DataBar, Postnet, PLANET, Australian Post, Japanese Post, Kix (Netherlands) Post, Royal Mail, GS1 DataBar Composites, Intelligent Mail Barcode, GS1-128 Composites
FeaturesUSB host
Dimensions (WxDxH)8.8 cm x 16.8 cm x 22.5 cm
Weight668 g
LocalisationEurope
Manufacturer Warranty1-year warranty
Extended Specification
General
Product TypeData collection terminal - rugged
Operating SystemMicrosoft Windows Embedded Compact 7
Display
Type3.5" colour TFT (reflective)
Resolution240 x 320
Colour Depth65K colours (16-bit)
FeaturesBacklit, Daylight Mode
Processor
ProcessorTexas Instruments OMAP 4
Processor Clock Speed1 GHz
Memory
Storage8 GB
RAM1 GB
Supported Flash Memory CardsmicroSD, microSDHC
Max Supported Capacity32 GB
Communications
Wireless Connectivity802.11a/b/g/n, Bluetooth 2.1 EDR
Security Protocols & FeaturesCCXv4
Multimedia
AudioMicrophone, speaker
Input Device
TypeTouch-screen, full alphanumeric backlit keyboard
Keys Qty52
Barcodes
Barcode ReaderYes
Scan Element Type2D imager
BarcodesGS1 DataBar, Postnet, PLANET, Australian Post, Japanese Post, Kix (Netherlands) Post, Royal Mail, GS1 DataBar Composites, Intelligent Mail Barcode, GS1-128 Composites
Max Working Distance74 cm
Minimum Bar Width2.5 mil
Software
Preloaded SoftwareWavelink Avalanche, Wavelink Terminal Emulation, Datalogic Windows SDK, Datalogic Pal Application Library, Datalogic xPlatform Utility, Datalogic Desktop Utility
Expansion and Connectivity
Expansion Slots1 x microSD
Interfaces1 x USB ¦ 1 x serial RS-232
USB HostYes
Battery
TechnologyLithium Ion
Capacity5200 mAh
Miscellaneous
FeaturesShock-resistant, Green Spot technology, hot-swappable battery, drop-resistant, MIMO technology
Included AccessoriesPistol grip handle
Compliant StandardsIP65, EN 60825-1 Class 2, 21 CFR 1040.10, IEC/EN 62471, EU RoHS, IEC 68-2-32
