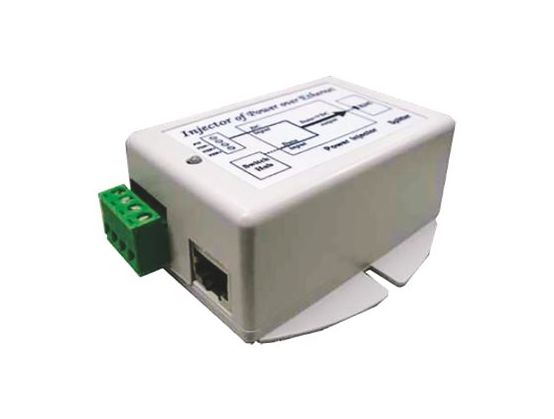

Fluidmesh FM-POE-LOW-48 - PoE injector - DC 9 - 32 V - 17 Watt - output connectors: 1
Manufacture#: FLMESH-HW-ACC-20
Checking delivery…
Product details
- PoE injector
- DC 9
- 32 V
- 17 Watt
Payment options available at checkout
Main features
- Fluidmesh FM-POE-LOW-48
- PoE injector
- DC 9
- 32 V
- 17 Watt
- output connectors: 1
Overview
Fluidmesh FM-POE-LOW-48 - PoE injector - 17 Watt
Product Description
Fluidmesh FM-POE-LOW-48 - PoE injector - 17 Watt
Device Type
PoE injector - external
Power Over Ethernet (PoE)
PoE
Weight
134 g
Input Voltage
DC 9 - 32 V
Output Voltage
DC 48 V
Power Capacity
17 Watt
Input Connectors
1 x 4 pin terminal block
Dimensions (WxDxH)
8.5 cm x 7.6 cm x 3.6 cm
Manufacturer Warranty
90 days warranty
General
Device Type
PoE injector - external
Power Over Ethernet (PoE)
PoE (IEEE 802.3af)
Power Device
Input Voltage
DC 9 - 32 V
Input Connectors
1 x 4 pin terminal block
Output Voltage
DC 48 V
Max Electric Current
0.35 A
Power Capacity
17 Watt
Efficiency
75%
Expansion / Connectivity
Interfaces
1 x Gigabit LAN (PoE) - RJ-45
Miscellaneous
Features
Over current protection, over voltage protection, reverse polarity protection, short-circuit protection
Compliant Standards
IEEE 802.3af, FCC Class B certified, EN55022 Class B, UL 1950, CSA 22.2, TUV EN60950-1
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 90 days - response time: 10 days
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
60 °C
Humidity Range Operating
5 - 90%
Dimensions & Weight
Width
8.5 cm
Depth
7.6 cm
Height
3.6 cm
Weight
134 g
