High density, double-conversion on-line power protection with scalable runtime.
Double Conversion On-Line Topology
2700W 3000VA
Lithium-ion Extended Long Runtime Battery Pack with Intelligent Battery Management System
Rack/Tower Convertible Form Factor
Switched Outlet Groups
Built-in Automatic & Manual Bypass
High Efficiency Green Mode
1-Year Secure Network Management Card subscription included
LCD graphics displayText and mimic diagrams that display modes of operation, system parameters and alarms.Lithium-ion batteryLithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.Rack/Tower convertibleProtects the initial investment in the UPS when migrating from tower to rack-mount environment.

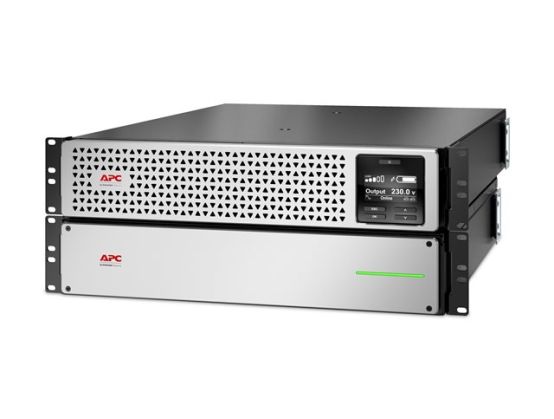

Product DescriptionAPC Smart-UPS On-Line - UPS - 2700 Watt - 3000 VA - with APC UPS Network Management Card
Device TypeUPS - rack-mountable
Cord Length1.83 m
Rack Size4U
Weight44.5 kg
Input VoltageAC 220/230 V
Output VoltageAC 220/230 V
Power Capacity2700 Watt / 3000 VA
Input Connectors1 x power IEC 60320 C20
Output connectors6 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
BatteryLithium ion
NetworkingUSB, Ethernet 10/100/1000, serial
ColourBlack, silver
Dimensions (WxDxH)43.2 cm x 63.9 cm x 17.1 cm
Manufacturer Warranty5-year warranty
Bundled withAPC UPS Network Management Card
Extended Specification
General
Device TypeUPS - rack-mountable
Height (Rack Units)4U
Cord Length1.83 m
ColourBlack, silver
Bundled withAPC UPS Network Management Card
Power Device
UPS TechnologyOn-line
Input VoltageAC 220/230 V
Input Voltage RangeAC 160 - 275 V
Frequency Provided50/60 Hz ± 3Hz
Frequency Required40 - 70 Hz
Input Connectors1 x power IEC 60320 C20
Power Output Connectors Details6 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output VoltageAC 220/230 V 50/60 Hz
Power Capacity2700 Watt / 3000 VA
Output WaveformSinewave
Surge SuppressionYes
Surge Energy Rating432 Joules
Battery
TechnologyLithium ion
Networking
Remote Management InterfaceUSB, Ethernet 10/100/1000, serial
Expansion / Connectivity
Interfaces1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45 ¦ 2 x universal I/O port ¦ 2 x management (USB) - 4 pin USB Type A ¦ 1 x console
