Freight charge of 1% to be added for APC kit, Please add SKU 2550388 at 1% of total order value to your PO when placing order
Manufacture#: SRTL2200RM4UXLI-NC
£2996 .52
£3595.82 inc VAT
Checking delivery…
Product details
UPS (rack-mountable) (high density)
AC 220/230 V
1980 Watt
2200 VA
Payment options available at checkout
Main features

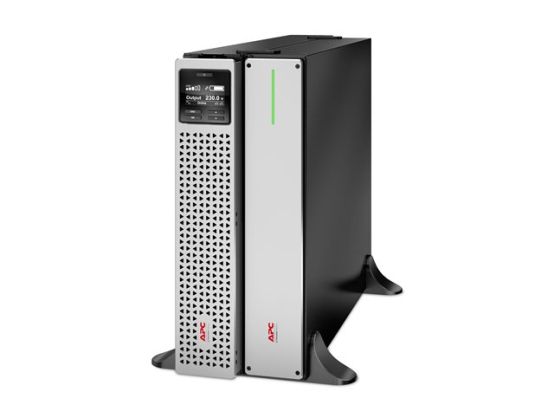

APC Smart-UPS On-Line SRTL2200RM4UXLI-NC
UPS (rack-mountable) (high density)
AC 220/230 V
1980 Watt
2200 VA
Lithium Ion
output connectors: 8
4U
1.83 m cord
black with silver front bezel
with APC UPS Network Management Card
Overview
At 1980W/2200VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power, preinstalled Netwrok Management Card. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.
Product Description
APC Smart-UPS On-Line SRTL2200RM4UXLI-NC - UPS - 1980 Watt - 2200 VA - Li-Ion - with APC UPS Network Management Card
Device Type
UPS - rack-mountable
Cord Length
1.83 m
Rack Size
4U
Weight
44.5 kg
Input Voltage
AC 220/230 V
Output Voltage
AC 220/230 V ± 2%
Power Capacity
1980 Watt / 2200 VA
Input Connectors
1 x power IEC 60320 C20
Output connectors
6 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Battery
High density - Lithium Ion
Included Accessories
Rail kit
Colour
Black with silver front bezel
Dimensions (WxDxH)
63.9 cm x 43.2 cm x 17.1 cm
Manufacturer Warranty
5-year warranty
Bundled with
APC UPS Network Management Card
General
Device Type
UPS - rack-mountable
Height (Rack Units)
4U
Cord Length
1.83 m
Colour
Black with silver front bezel
Bundled with
APC UPS Network Management Card
Power Device
UPS Technology
On-line
Input Voltage
AC 220/230 V
Input Voltage Range
AC 160 - 275 V
Frequency Provided
50/60 Hz ± 3Hz
Frequency Required
40 - 70 Hz
Input Connectors
1 x power IEC 60320 C20
Power Output Connectors Details
6 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 220/230 V ± 2% - 50/60 Hz
Power Capacity
1980 Watt / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
432 Joules
Battery
Type
High density
Technology
Lithium Ion
Voltage Provided
48 V
Miscellaneous
Included Accessories
Rail kit
Cables Included
Power cable 1.83 m
Rack Mounting Kit
Included
Features
Horizontal orientation, vertical orientation, emergency power off, alarm, LCD status and control console, high density, Kensington security slot, double conversion, internal bypass, LCD display, audible alarm
Compliant Standards
IP20, EU RoHS
Manufacturer Warranty
Service & Support
Limited warranty - replace or repair - 5 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Sound Emission
50 dBA
Dimensions & Weight
Width
63.9 cm
Depth
43.2 cm
Height
17.1 cm
Weight
44.5 kg
