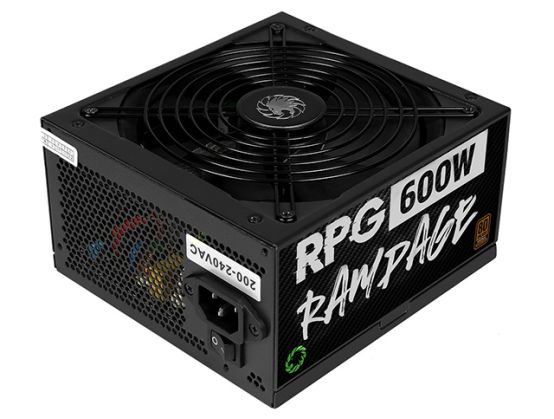

The Rampage PSU Range is the latest PSU series to be launched by GameMax. The Rampage Range is available in a flexible APFC Non-Modular (500W, 600W, 700W & 800W) and an APFC Semi-Modular power supply (750W) variants. The GameMax Rampage is built using the highest quality components to deliver 'Real Power Gaming' to your PC. Not only is this power supply impressive in it's performance but the components used in this power supply are components normally found in top tier brands without breaking the bank.
Output connectors1 x 20+4 Pin Main Connectors ¦ 1 x 4+4 Pin 12V Connectors ¦ 6 x SATA Connectors ¦ 2 x 4-Pin Molex Connectors ¦ 2 x 6+2 Pin PCI-e Connectors
Modular Cable ManagementNo
Cooling System140mm fan
Included AccessoriesCable Ties
Dimensions (WxDxH)150 mm x 160 mm x 87 mm
Manufacturer Warranty2 years warranty
Extended Specification
General
Device TypePower supply - internal
PSU Form FactorATX
LocalisationUnited Kingdom
Power Device
Input Voltage200-240 VAC
Input Frequency Range50Hz
Power Output Connectors Details1 x 20+4 Pin Main Connectors ¦ 1 x 4+4 Pin 12V Connectors ¦ 6 x SATA Connectors ¦ 2 x 4-Pin Molex Connectors ¦ 2 x 6+2 Pin PCI-e Connectors
Output Voltage+3.3, +5, ±12 V
Power Capacity600 Watt
Output Current+3.3V - 20 A ¦ +5V - 21 A ¦ +12V - 48 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
