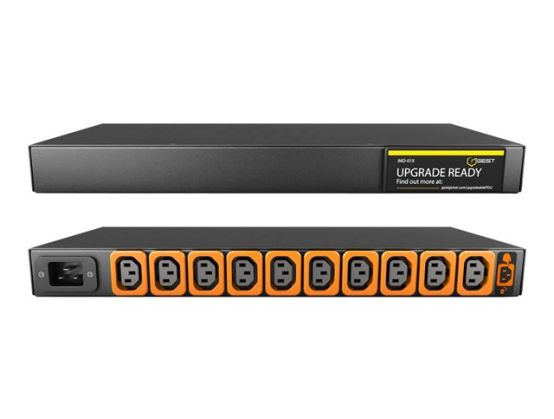

Geist Basic Upgradeable MU01X1R0-10L137-2C20A9H00-S - power distribution unit - 3.6 kW
Checking delivery…
Product details
Power distribution unit (rack-mountable)
AC 120/208/230 V
3.6 kW
input: IEC 60320 C20
Payment options available at checkout
Main features
Geist Basic Upgradeable MU01X1R0-10L137-2C20A9H00-S
Power distribution unit (rack-mountable)
AC 120/208/230 V
3.6 kW
input: IEC 60320 C20
output connectors: 10 (10 x IEC 60320 C13)
1U
black powder coat
Overview
Basic Upgradeable rPDUs provide reliable power distribution to critical IT equipment within a rack or cabinet.
With the Geist Upgradeable hot-swap technology, users may easily transform basic rPDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD).
Simple and convenient configuration options for cord lengths and chassis colors.
Standard three-year warranty, upgraded to a five-year warranty with product registration.
Product Description
Geist Basic Upgradeable MU01X1R0-10L137-2C20A9H00-S - power distribution unit - 3.6 kW
Device Type
Power distribution unit - rack-mountable
Rack Size
1U
Input Voltage
AC 120/208/230 V
Power Capacity
3.6 kW
Input Connectors
1 x power IEC 60320 C20
Output connectors
10 x power IEC 60320 C13
Colour
Black powder coat
Dimensions (WxDxH)
43.2 cm x 21.6 cm x 4.4 cm
Manufacturer Warranty
5-year warranty with product registration
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
1U
Colour
Black powder coat
Power Device
Input Voltage
AC 120/208/230 V
Input Voltage Range
AC 100 - 240 V
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C20
Power Output Connectors Details
10 x power IEC 60320 C13
Max Electric Current
20 A
Power Capacity
3.6 kW
Miscellaneous
Rack Mounting Kit
Included
Features
Horizontal orientation, U-lock outlets, Interchangeable Monitoring Device (IMD) module
Compliant Standards
China RoHS, UL, IEC/UL 60950, cUL, RoHS, FCC Part 15 A, CB, IEC 60950-1, EN 55032
Manufacturer Warranty
Service & Support
Limited warranty - 5 years with product registration ¦ Limited warranty - 3 years
Environmental Parameters
Max Operating Temperature
60 °C
Dimensions & Weight
Width
43.2 cm
Depth
21.6 cm
Height
4.4 cm
Dimensions & Weight (Shipping)
Shipping Weight
5.44 kg
