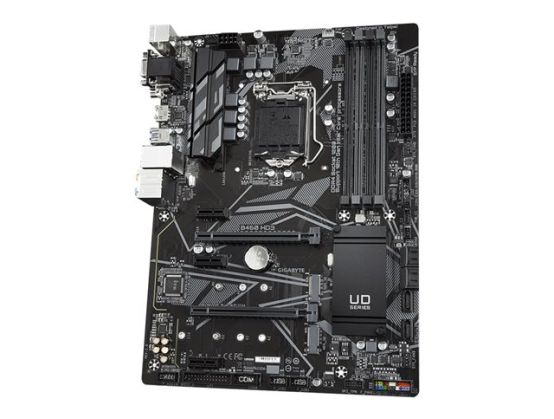

B460 HD3 motherboard uses low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy saving which are beneficial for both end-users and the environment without impacting system performance.
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 3 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode)
Storage InterfacesSATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -connectors: 1 x M.2 ¦ PCIe -connectors: 1 x M.2
Interfaces1 x HDMI ¦ 1 x DVI-D ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 2 x Thunderbolt - header ¦ 1 x serial - header ¦ 1 x parallel - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection
Hardware FeaturesQ-Flash, On/Off Charge, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, 4+2 Phase Power Design, ESD Protection, Audio Noise Guard with Path Lighting, GIGABYTE Ambient LED, Game Boost, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, Intel Optane Memory Ready, GIGABYTE Smart Fan 5, Solid Pin Power Connectors
Miscellaneous
Software IncludedNorton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
