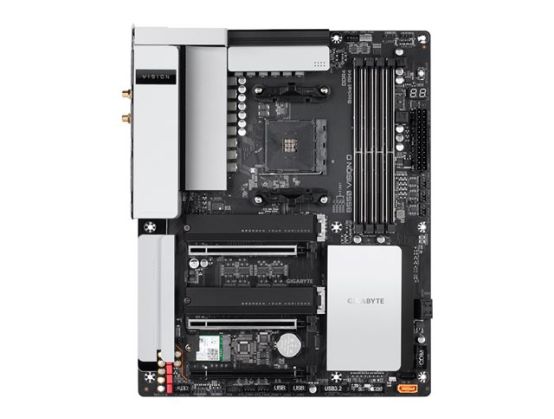

VISION Series motherboards are built for creator PC. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine.
Network Interfaces2 x Gigabit Ethernet, Bluetooth 5.0, 802.11a/b/g/n/ac Wave 2/ax
Expansion / Connectivity
Expansion Slots1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU), x8 mode (if PCIe x8 slot is occupied)) ¦ 1 x PCIe 4.0 x8 (PCIe 4.0 x8 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with New Generation Ryzen with Radeon Graphics CPU)) ¦ 1 x PCIe 3.0 x4
Storage InterfacesSATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Interfaces2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB-C Gen2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 2.0 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK
Internal Interfaces4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
Hardware MonitoringCPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
