GIGABYTE

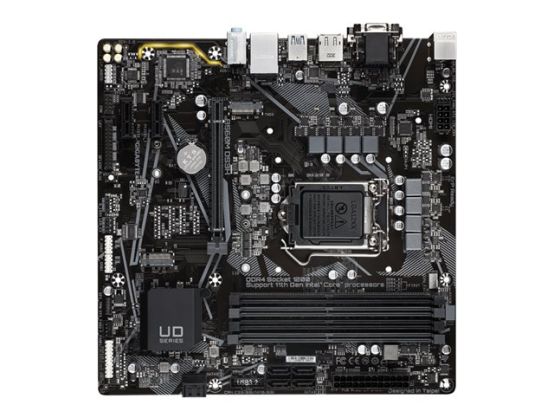

MB INT B560M DS3H 1200 DDR4 M-ATX

Name: MB INT B560M DS3H 1200 DDR4 M-ATX
Brand: GIGABYTE
SKU: 1TCPTMOT-003614
Price: 82.36 GBP
Availability: OutOfStock

SKU

1TCPTMOT-003614

Manufacture#: B560M DS3H

£68.63

£82.36 inc VAT

Checking delivery…

Product details

1.0
motherboard
micro ATX
LGA1200 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Gigabyte B560M DS3H
1.0
motherboard
micro ATX
LGA1200 Socket
B560 Chipset
USB-C Gen1, USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

MB INT B560M DS3H 1200 DDR4 M-ATX

Specification

Product Description Gigabyte B560M DS3H - 1.0 - motherboard - micro ATX - LGA1200 Socket - B560

Product Type Motherboard - micro ATX

Chipset Type Intel B560

Processor Socket 1 x LGA1200 Socket

Compatible Processors Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 6 x SATA-600, 2 x M.2

USB / FireWire Ports 1 x USB-C Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type Intel B560

Processor Socket LGA1200 Socket

Max Processors Qty 1

Compatible Processors Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode

Audio

Type HD Audio (8-channel)

Compliant Standards High Definition Audio

LAN

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2

Interfaces 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 1 x VGA ¦ 1 x USB-C Gen1 ¦ 3 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x serial - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage

Hardware Features Q-Flash, On/Off Charge, 6+2 Phase Power Design, Audio Noise Guard with Path Lighting, Q-Flash Plus, Game Boost, Intel Optane Memory Ready, RGB FUSION 2.0, GIGABYTE Smart Fan 6

Miscellaneous

Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control

Compliant Standards Plug and Play, DisplayPort 1.2, HDCP 2.3

Width 24.4 cm

Depth 24.4 cm
