GIGABYTE

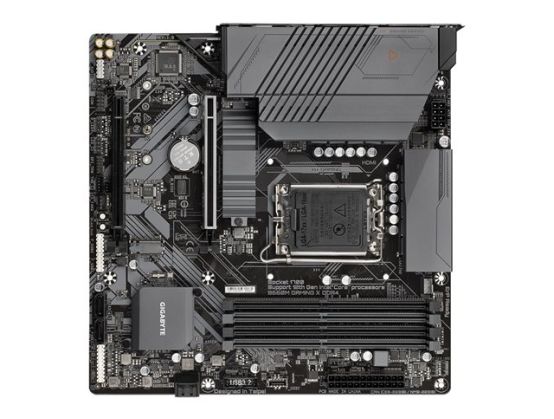

MB INT 1700 B660M GAMING X DDR4 M-ATX

Name: MB INT 1700 B660M GAMING X DDR4 M-ATX
Brand: GIGABYTE
SKU: 1TCPTMOT-004536
Price: 132.01 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004536

Manufacture#: B660M GAMING X DDR4

£110.01

£132.01 inc VAT

Checking delivery…

Product details

1.0
motherboard
micro ATX
LGA1700 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Gigabyte B660M GAMING X DDR4
1.0
motherboard
micro ATX
LGA1700 Socket
B660 Chipset
USB-C Gen2, USB 3.2 Gen 1
2.5 Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

Gigabyte B660M GAMING X DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - B660

Specification

Product Description Gigabyte B660M GAMING X DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - B660

Product Type Motherboard - micro ATX

Chipset Type Intel B660

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 3 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type Intel B660

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode

Audio

Type HD Audio (8-channel)

Compliant Standards High Definition Audio

LAN

Network Interfaces 2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x1 mode)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2

Interfaces 1 x DisplayPort ¦ 1 x HDMI ¦ 3 x USB 3.2 Gen 1 ¦ 5 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, fan fail warning

Hardware Features Q-Flash, HDCP compliant, On/Off Charge, Ultra Durable, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, Q-Flash Plus, Dr.MOS MOSFET, Game Boost, Audio Noise Guard, Intel Optane Memory Ready, M.2 Thermal Guard, Solid Pin Power Connectors, RGB FUSION 2.0, GIGABYTE Smart Fan 6, 8+1+1 Phase Power Design

Miscellaneous

Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control

Compliant Standards DisplayPort 1.2, HDCP 2.3

Width 24.4 cm

Depth 24.4 cm
