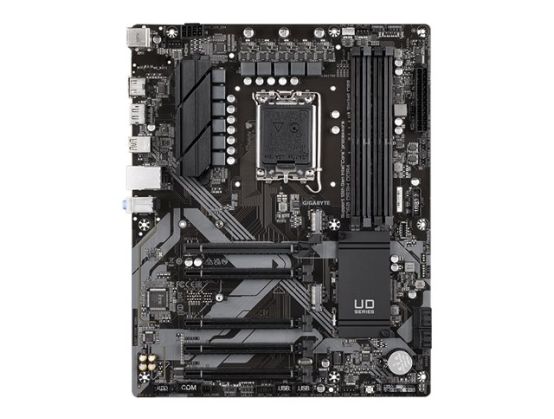

MB INT 1700 B760 DS3H AX DDR4 ATX
Manufacture#: B760 DS3H AX DDR4
Checking delivery…
Product details
1.0
motherboard
ATX
LGA1700 Socket
Payment options available at checkout
Main features
Gigabyte B760 DS3H DDR4
1.0
motherboard
ATX
LGA1700 Socket
B760 Chipset
USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
Gigabyte B760 DS3H DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - B760
Product Description
Gigabyte B760 DS3H DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - B760
Product Type
Motherboard - ATX
Chipset Type
Intel B760
Processor Socket
1 x LGA1700 Socket
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size
128 GB
RAM Supported
4 DIMM slots - DDR4, ECC (operate in non-ECC mode), non-ECC, unbuffered
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports
1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
Gigabit Ethernet
General
Product Type
Motherboard - ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3666 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check
ECC (operate in non-ECC mode), non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
LAN
Network Interfaces
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 4 x PCIe 3.0 x16 (x1 mode) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type
AMI
BIOS Features
PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS
Hardware Monitoring
System voltage, chassis temperature, fan control, water cooling flow rate, fan speed detection, fan fail warning
Hardware Features
Water Pump Header, Q-Flash Plus, Q-Flash, Solid Pin Power Connectors, 8+2+1 Phase Power Design, 6 Layer PCB, MultiKey, GIGABYTE Smart Fan 6, DIY Friendly Design, Ultra Durable, PCIe EZ Latch
Miscellaneous
Software Included
Norton Internet Security
Width
30.5 cm
Depth
24.4 cm
Package Details
Box
