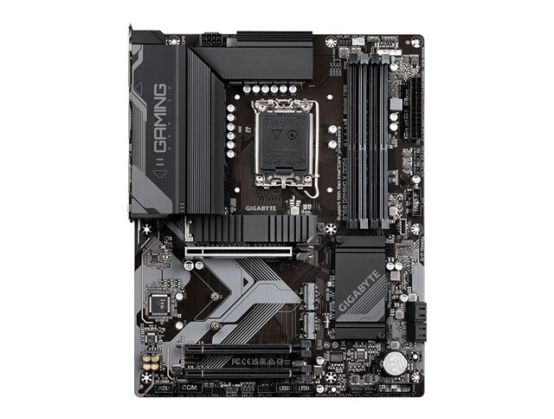

Gigabyte B760 GAMING X DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - B760
Manufacture#: B760 GAMING X DDR4
Checking delivery…
Product details
1.0
motherboard
ATX
LGA1700 Socket
Payment options available at checkout
Main features
Gigabyte B760 GAMING X DDR4
1.0
motherboard
ATX
LGA1700 Socket
B760 Chipset
USB-C 3.2 Gen2, USB 3.2 Gen 1
2.5 Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
Gigabyte B760 GAMING X DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - B760
Product Description
Gigabyte B760 GAMING X DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - B760
Product Type
Motherboard - ATX
Chipset Type
Intel B760
Processor Socket
1 x LGA1700 Socket
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size
128 GB
RAM Supported
4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports
1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 5 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
2.5 Gigabit Ethernet
General
Product Type
Motherboard - ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3666 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
LAN
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x16 (x1 mode) ¦ 3 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x DisplayPort ¦ 1 x HDMI ¦ 5 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type
AMI
BIOS Features
PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, UEFI BIOS
Hardware Monitoring
Fan fail warning, fan control, chassis temperature, system voltage, water cooling flow rate
Hardware Features
8+1+1 Phase Power Design, GIGABYTE Smart Fan 6, Q-Flash Plus, Solid Pin Power Connectors, 60A Power Stage, M.2 Thermal Guard, DIY Friendly Design, pre-mounted I/O shield, GIGABYTE PerfDrive, Ultra Durable, MultiKey, Dr.MOS MOSFET
Miscellaneous
Software Included
Norton Internet Security (OEM Version), GIGABYTE Control Center
Width
30.5 cm
Depth
24.4 cm
