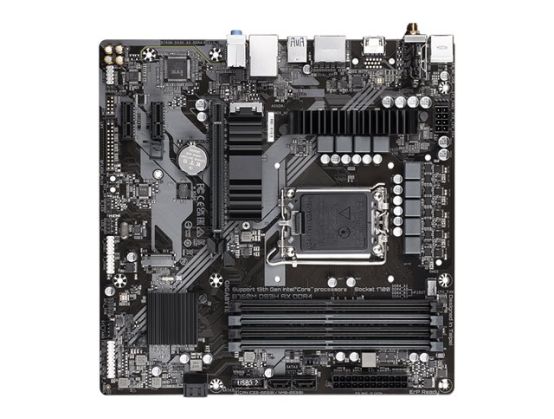

Gigabyte B760M DS3H AX DDR4 - 1.X - motherboard - micro ATX - LGA1700 Socket - B760

Name: Gigabyte B760M DS3H AX DDR4 - 1.X - motherboard - micro ATX - LGA1700 Socket - B760
Brand: GIGABYTE
SKU: 1TCPTMOT-004545
Price: 96.73 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004545

Manufacture#: B760M DS3H AX DDR4

£80.61

£96.73 inc VAT

Checking delivery…

Product details

1.X
motherboard
micro ATX
LGA1700 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Gigabyte B760M DS3H AX DDR4
1.X
motherboard
micro ATX
LGA1700 Socket
B760 Chipset
USB-C 3.2 Gen2, USB 3.2 Gen 1
2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

Gigabyte B760M DS3H AX DDR4 - 1.X - motherboard - micro ATX - LGA1700 Socket - B760

Intel Socket LGA 1700
Unparalleled performance
Dual channel DDR4
Next generation storage
M.2 thermal guard
EZ-Latch
Fast networks
Extended connectivity
Smart Fan 6
Q-Flash Plus

GIGABYTE ultra-efficient M.2 thermal guard With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 thermal guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. Connectivity GIGABYTE motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage and Wi-Fi connectivity. Personalization GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

Specification

Product Description Gigabyte B760M DS3H AX DDR4 - 1.X - motherboard - micro ATX - LGA1700 Socket - B760

Product Type Motherboard - micro ATX

Chipset Type Intel B760

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, ECC (operate in non-ECC mode), non-ECC

Storage Ports 4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth

General

Product Type Motherboard - micro ATX

Chipset Type Intel B760

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3666 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.)

Supported RAM Integrity Check ECC (operate in non-ECC mode), non-ECC

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode

Audio

Type HD Audio (8-channel)

Compliant Standards High Definition Audio

LAN

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2280 M.2 Key M slot)

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 2 x M.2

Interfaces 2 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ PS/2 keyboard / mouse ¦ 2 x aerial

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support

Hardware Monitoring Fan fail warning, fan control, chassis temperature

Hardware Features Q-Flash Plus, Q-Flash, 6+2+1 Phase Power Design, M.2 Thermal Guard, GIGABYTE Smart Fan 6, Solid Pin Power Connectors, Audio Noise Guard, RGB FUSION, MultiKey, DIY Friendly Design

Miscellaneous

Included Accessories External antenna, IO shield

Cables Included 2 x Serial ATA cable

Software Included Norton Internet Security

Compliant Standards FCC Part 15 Subpart B, WEEE, UKCA

Width 24.4 cm

Depth 24.4 cm

Package Details Box
