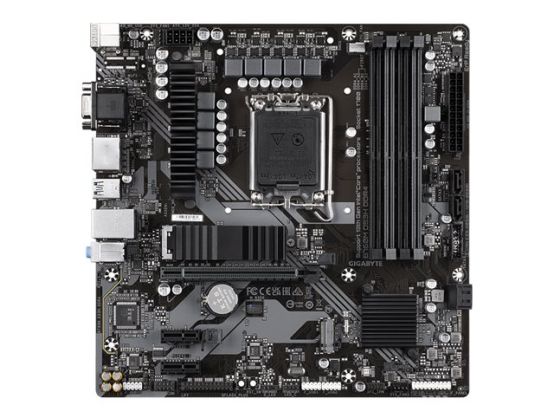

MB INT 1700 B760M DS3H DDR4 MATX
Manufacture#: B760M DS3H DDR4
Checking delivery…
Product details
1.0
motherboard
micro ATX
LGA1700 Socket
Payment options available at checkout
Main features
Gigabyte B760M DS3H DDR4
1.0
motherboard
micro ATX
LGA1700 Socket
B760 Chipset
USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2
2.5 Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
Gigabyte B760M DS3H DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - B760
Product Description
Gigabyte B760M DS3H DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - B760
Product Type
Motherboard - micro ATX
Chipset Type
Intel B760
Processor Socket
1 x LGA1700 Socket
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size
128 GB
RAM Supported
4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports
1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
2.5 Gigabit Ethernet
General
Product Type
Motherboard - micro ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR4
Bus Clock
2400 MT/s, 2133 MT/s, 2666 MT/s, 2933 MT/s, 3000 MT/s, 3200 MT/s, 3300 MT/s (O.C.), 3333 MT/s (O.C.), 3400 MT/s (O.C.), 3466 MT/s (O.C.), 3600 MT/s (O.C.), 3666 MT/s (O.C.), 3733 MT/s (O.C.), 3800 MT/s (O.C.), 3866 MT/s (O.C.), 4000 MT/s (O.C.), 4133 MT/s (O.C.), 4266 MT/s (O.C.), 4300 MT/s (O.C.), 4400 MT/s (O.C.), 4500 MT/s (O.C.), 4600 MT/s (O.C.), 4700 MT/s (O.C.), 4800 MT/s (O.C.), 4933 MT/s (O.C.), 5000 MT/s (O.C.), 5133 MT/s (O.C.), 5333 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
LAN
Network Interfaces
2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2
Interfaces
2 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type
AMI
BIOS Features
PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
Fan fail warning, fan control, water cooling flow rate
Hardware Features
6+2+1 Phase Power Design, M.2 Thermal Guard, GIGABYTE Smart Fan 6, Q-Flash Plus, Solid Pin Power Connectors, RGB FUSION, MultiKey, DIY Friendly Design
Miscellaneous
Cables Included
2 x Serial ATA cable
Software Included
Norton Internet Security
Compliant Standards
DisplayPort 1.2, HDCP 2.3, FCC Part 15 Subpart B, WEEE, UKCA
Width
24.4 cm
Depth
24.4 cm
