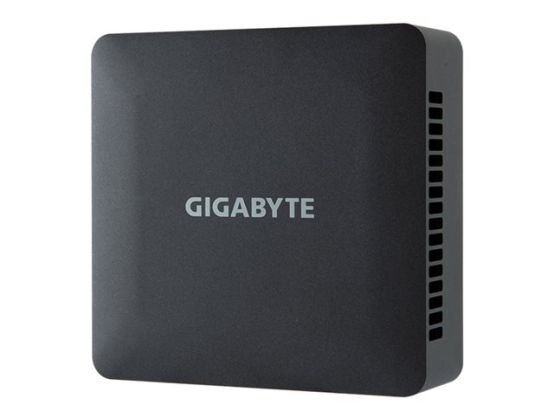

Gigabyte BRIX s GB-BRi5H-1335 (rev. 1.0) - Ultra Compact PC Kit Core i5 1335U - 0 GB - no HDD
Manufacture#: GB-BRI5H-1335
Checking delivery…
Product details
Barebone
Ultra Compact PC Kit 1 x Core i5 1335U / up to 4.6 GHz
RAM 0 GB
Intel Iris Xe Graphics
Payment options available at checkout
Main features
Gigabyte BRIX s GB-BRi5H-1335 (rev. 1.0)
Barebone
Ultra Compact PC Kit 1 x Core i5 1335U / up to 4.6 GHz
RAM 0 GB
Intel Iris Xe Graphics
Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
Overview
Gigabyte BRIX s GB-BRi5H-1335 (rev. 1.0) - Ultra Compact PC Kit Core i5 1335U - 0 GB - no HDD
Ultra small form factor for space-saving installation
Intel Wi-Fi 6 AX 203 and Bluetooth 5.2 for high-speed connectivity
Intel Iris Xe Graphics for vivid visuals
Flexible storage and performance upgrade options
Powerful 10-core Intel Core i5 processor for efficient multitasking
Product Description
Gigabyte BRIX s GB-BRi5H-1335 (rev. 1.0) - Ultra Compact PC Kit Core i5 1335U - 0 GB - no HDD
Type
PC barebone - Ultra Compact PC Kit
Processor
1 x Intel Core i5 (13th Gen) 1335U (up to 4.6 GHz, (10-core)
Processor Main Features
Intel Smart Cache
Cache Memory
12 MB
Cache Per Processor
12 MB
RAM
0 GB (installed) / 64 GB (max) - DDR4 SDRAM
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
Intel Iris Xe Graphics
Audio Output
Stereo
Networking
1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, Bluetooth 5.2, Wi-Fi 6
OS Provided
No operating system
Dimensions (WxDxH)
12.4 cm x 12 cm x 4.97 cm
General
Type
PC barebone
Product Form Factor
Ultra Compact PC Kit
Processor / Chipset
CPU
Intel Core i5 (13th Gen) 1335U
Max Turbo Speed
4.6 GHz
Number of Cores
10-core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Smart Cache
Cache Memory
Installed Size
12 MB
Cache Per Processor
12 MB
RAM
Installed Size
0 GB (installed) / 64 GB (max)
Technology
DDR4 SDRAM
Form Factor
SO-DIMM 260-pin
Slots
2 (Total) / 2 (empty)
Storage Controller
Type
SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
1
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
Intel Iris Xe Graphics
Audio Output
Sound Output Mode
Stereo
Compliant Standards
High Definition Audio
Networking
Ethernet Controller
Intel I226-V
Wireless LAN Supported
Yes
Wireless NIC
Intel Wi-Fi 6 AX 203
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6)
Expansion / Connectivity
Bays
1 (total) / 1 (free) x internal 2.5"
Slots
1 (total) / 1 (free) x M.2 Card - 2280 (SATA/PCIe 4.0 x4 (NVMe))
Interfaces
2 x USB 3.2 Gen 2 (2 front) ¦ 1 x headphones/microphone - mini-jack (1 front) ¦ 2 x USB 2.0 (2 front) ¦ 1 x LAN (2.5Gigabit Ethernet) (1 rear) ¦ 2 x DisplayPort/USB-C 3.2 Gen 2 (2 rear) ¦ 2 x HDMI (2 rear)
Miscellaneous
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot
VESA Mounting Interface
100 x 100 mm, 75 x 75 mm
Power
Device Type
Power adapter
Voltage Required
AC 100-240 V
Power Provided
135 Watt
Operating System / Software
OS Provided
No operating system
OS Certified
Windows 10, Windows 11
Dimensions & Weight
Width
12.4 cm
Depth
12 cm
Height
4.97 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
