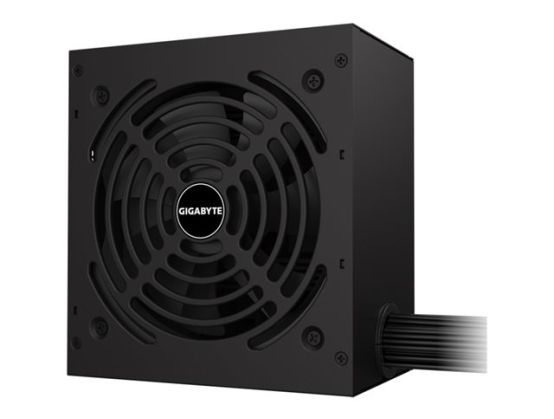

Product DescriptionGigabyte GP-P650G - power supply - 650 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V
80 PLUS Certification80 PLUS Gold
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V, +5Vsb V
Power Capacity650 Watt
Output Current+3.3V - 18 A ¦ +5V - 15 A ¦ +12V - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power
Cooling System120 mm fan
Dimensions (WxDxH)15 cm x 14 cm x 8.6 cm
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V
PSU Form FactorATX
Power Device
Input VoltageAC 100-240 V
Frequency Provided50 - 60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power
Output Voltage+3.3, +5, ±12 V, +5Vsb V 50 - 60 Hz
Power Capacity650 Watt
Output Current+3.3V - 18 A ¦ +5V - 15 A ¦ +12V - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Power Factor (PF)0.9
80 PLUS Certification80 PLUS Gold
Miscellaneous
MTBF100,000 hours
Cooling System120 mm fan
FeaturesHydraulic bearing cooling fan, single 12V rail, overpower protection, over current protection, overheat protection, over voltage protection, undervoltage correction, short-circuit protection
