GIGABYTE

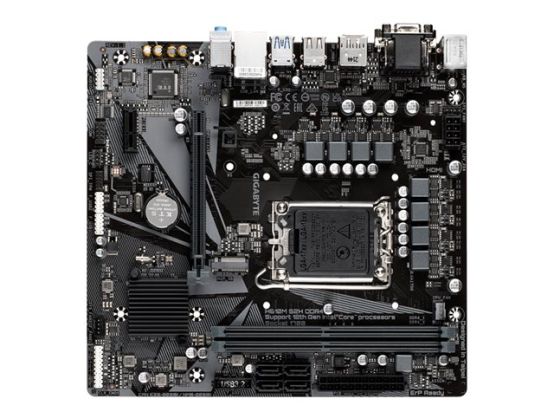

Gigabyte H610M S2H DDR4 - 1.1 - motherboard - micro ATX - LGA1700 Socket - H610

Name: Gigabyte H610M S2H DDR4 - 1.1 - motherboard - micro ATX - LGA1700 Socket - H610
Brand: GIGABYTE
SKU: 1TCPTMOT-004537
Price: 72.72 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004537

Manufacture#: H610M S2H DDR4

£60.60

£72.72 inc VAT

Checking delivery…

Product details

1.1
motherboard
micro ATX
LGA1700 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Gigabyte H610M S2H DDR4
1.1
motherboard
micro ATX
LGA1700 Socket
H610 Chipset
USB 3.2 Gen 1
Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

Gigabyte H610M S2H DDR4 - 1.1 - motherboard - micro ATX - LGA1700 Socket - H610

Specification

Product Description Gigabyte H610M S2H DDR4 - 1.1 - motherboard - micro ATX - LGA1700 Socket - H610

Product Type Motherboard - micro ATX

Chipset Type Intel H610

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 64 GB

RAM Supported 2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 4 x SATA-600, 1 x M.2

USB / FireWire Ports 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type Intel H610

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 64 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode

Audio

Type HD Audio (8-channel)

Compliant Standards High Definition Audio

LAN

Network Interfaces Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2

Interfaces 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x DVI-D ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header

Power Connectors 24-pin main power connector, 4-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, fan fail warning

Hardware Features HDCP compliant, Game Boost, On/Off Charge, RGB FUSION 2.0, Q-Flash, 6+1+1 Phase Power Design, Audio Noise Guard, GIGABYTE Smart Fan 6, Anti-Sulfur Design, Dr.MOS MOSFET, Solid Pin Power Connectors

Miscellaneous

Software Included GIGABYTE App Center, @BIOS, EasyTune, GIGABYTE Fast Boot, Xpress Install, GIGABYTE Smart Backup, Norton Internet Security

Compliant Standards DisplayPort 1.2, HDCP 2.3

Width 23 cm

Depth 21.5 cm
