GIGABYTE

X299 DESIGNARE EX S2066 ATX SND+LN+U3.1+M2 SATA 6GB/S DDR4

Name: X299 DESIGNARE EX S2066 ATX SND+LN+U3.1+M2 SATA 6GB/S DDR4
Brand: GIGABYTE
SKU: 1TCPTMOT-004353
Price: 459.35 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004353

Manufacture#: X299 DESIGNARE EX

£382.79

£459.35 inc VAT

Checking delivery…

Product details

1.0
motherboard
ATX
LGA2066 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

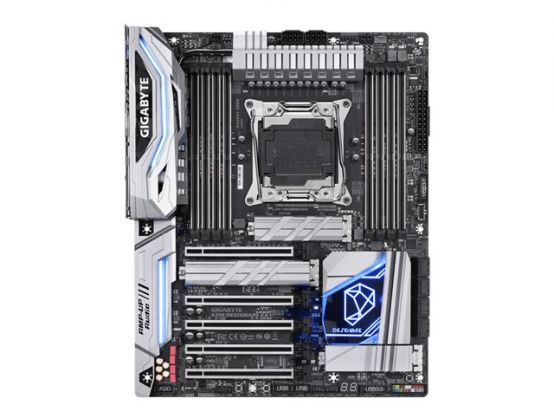

Gigabyte X299 DESIGNARE EX
1.0
motherboard
ATX
LGA2066 Socket
X299 Chipset
USB 3.1 Gen 1, USB-C Gen2
Bluetooth, 2 x Gigabit LAN, Wi-Fi
onboard graphics
HD Audio (8-channel)

Overview

The GIGABYTE X299 enthusiast motherboards are faster and more powerful than any motherboard the world has ever seen. With an aggressively redesigned armor and thermal heatsinks its sure to turn heads and catch eyes. Performance is no stranger to GIGABYTE, with exotic cooling and an ability to be tuned to peak performance GIGABYTE motherboards will exceed expectations.

Specification

Product Description Gigabyte X299 DESIGNARE EX - 1.0 - motherboard - ATX - LGA2066 Socket - X299

Product Type Motherboard - ATX

Chipset Type Intel X299

Processor Socket 1 x LGA2066 Socket

Compatible Processors Core X

Max RAM Size 512 GB

RAM Supported 8 DIMM slots - DDR4, non-ECC, registered, unbuffered

Storage Ports 6 x SATA-600 (RAID), 2 x SATA-600, 3 x M.2

USB / FireWire Ports 2 x USB-C Gen 2 + 4 x USB 3.1 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 4 x USB 3.1 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac

General

Product Type Motherboard - ATX

Chipset Type Intel X299

Processor Socket LGA2066 Socket

Max Processors Qty 1

Compatible Processors Core X

Supported RAM

Max Size 512 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.)

Supported RAM Integrity Check Non-ECC

Registered or Buffered Registered, unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), quad channel memory architecture

Details 128 GB - unbuffered ¦ 512 GB - registered

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC1220

Compliant Standards High Definition Audio, Sound BlasterX 720°

LAN

Network Interfaces Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 8 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 2 x PCIe 3.0 x16 (x4 mode)

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA

Interfaces 2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x Thunderbolt 3/USB-C Gen2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 2 x DisplayPort input

Internal Interfaces 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x USB-C Gen2 - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate

Hardware Features AutoGreen, NVIDIA 3-way SLI Technology Support, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, On/Off Charge, Ultra Durable, NVIDIA 4-way SLI Technology Support, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, AMD 4-way CrossFireX technology support, ESD Protection, Q-Flash Plus, Game Boost, GIGABYTE Double Locking Bracket, Ultra Durable Memory Armor, Anti-Sulfur Design, GIGABYTE USB DAC-UP 2, Intel Optane Memory Ready, GIGABYTE Smart Fan 5, RGB FUSION, Ultra Durable PCIe Armor, RGBW/-UV LED strips support, M.2 Thermal Guard, Digital Fuse Design, GIGABYTE Base Plate

Miscellaneous

Software Included Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE HW OC APP, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD, GIGABYTE Smart HUD, XSplit Gamecaster (1 year licence)

Compliant Standards Plug and Play

Width 30.5 cm

Depth 24.4 cm
