GIGABYTE

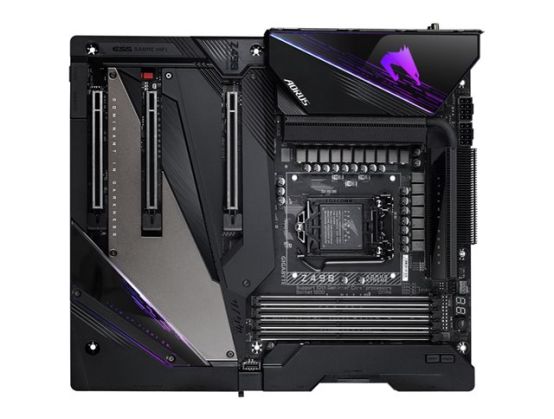

MB INT 1200 Z490 Aorus Xtreme D4 ATX

Name: MB INT 1200 Z490 Aorus Xtreme D4 ATX
Brand: GIGABYTE
SKU: 1TCPTMOT-004279
Price: 697.93 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004279

Manufacture#: Z490 AORUS XTREME

£581.61

£697.93 inc VAT

Checking delivery…

Product details

1.X
motherboard
extended ATX
LGA1200 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Gigabyte Z490 AORUS XTREME
1.X
motherboard
extended ATX
LGA1200 Socket
Z490 Chipset
USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
10 Gigabit LAN, 2.5 Gigabit LAN, Wi-Fi, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

Showcasing a fantastic design, excellent functionality, an impressive thermal design, modern network connectivity, a powerful audio system, and AORUS aesthetics, the Z490 AORUS XTREME motherboard dominates the competition.

Specification

Product Description Gigabyte Z490 AORUS XTREME - 1.X - motherboard - extended ATX - LGA1200 Socket - Z490

Product Type Motherboard - extended ATX

Chipset Type Intel Z490

Processor Socket 1 x LGA1200 Socket

Compatible Processors Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 10th Generation Intel Core / Pentium / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 6 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports 2 x USB-C Gen 2 + 4 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Max Allocated RAM Size 512 MB

Audio HD Audio (8-channel)

LAN 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.1

General

Product Type Motherboard - extended ATX

Chipset Type Intel Z490

Processor Socket LGA1200 Socket

Max Processors Qty 1

Compatible Processors Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 10th Generation Intel Core / Pentium / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.)

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode

Graphics

Max Allocated RAM Size 512 MB

Audio

Type HD Audio (8-channel)

Audio Codec Realtek ALC1220-VB / ESS ES9218P / ESS ES9018K2M

Compliant Standards High Definition Audio, DTS:X Ultra

LAN

Network Interfaces 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac Wave 2/ax, Bluetooth 5.1

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x8 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode (x2 mode if M.2 is occupied))

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -connectors: 2 x M.2 ¦ PCIe -connectors: 1 x M.2

Interfaces 1 x HDMI ¦ 2 x Thunderbolt 3/USB-C Gen2 ¦ 4 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x TOSLINK ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet)

Internal Interfaces 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C Gen2 - header

Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate, fan fail warning

Hardware Features NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, 16 Phase Power Design, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, 2x Copper PCB, 8 Layer PCB, Q-Flash Plus, Game Boost, Ultra Durable Memory Armor, Intel Optane Memory Ready, GIGABYTE Smart Fan 5, Ultra Durable PCIe Armor, Solid Pin Power Connectors, GIGABYTE USB TurboCharger, RGB FUSION 2.0, NanoCarbon Baseplate, 90A Smart Power Stage, M.2 Thermal Guard II, Fins-Array II Heatsink and Direct Touch Heatpipe II

Miscellaneous

Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, cFosSpeed, GIGABYTE Smart Backup, XSplit Gamecaster (1 year licence), XSplit Broadcaster (1 year licence)

Width 30.5 cm

Depth 27.1 cm
