GIGABYTE

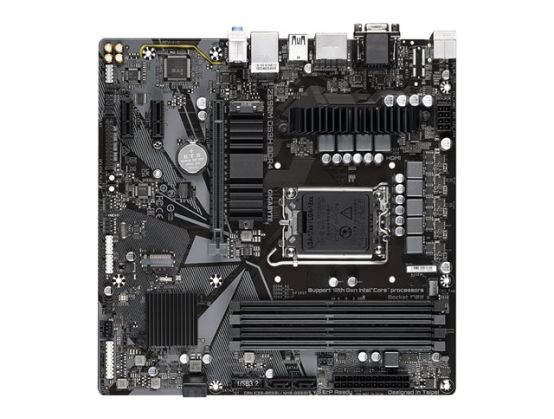

MB INT 1700 Z690M DS3H M-ATX

Name: MB INT 1700 Z690M DS3H M-ATX
Brand: GIGABYTE
SKU: 1TCPTMOT-004310
Price: 136.22 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004310

Manufacture#: Z690M DS3H DDR4

£113.52

£136.22 inc VAT

Checking delivery…

Product details

1.0
motherboard
micro ATX
LGA1700 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Gigabyte Z690M DS3H DDR4
1.0
motherboard
micro ATX
LGA1700 Socket
Z690 Chipset
USB-C Gen2, USB 3.2 Gen 1
2.5 Gigabit LAN
onboard graphics (CPU required)
HD Audio (8-channel)

Overview

Gigabyte Z690M DS3H DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - Z690

Specification

Product Description Gigabyte Z690M DS3H DDR4 - 1.0 - motherboard - micro ATX - LGA1700 Socket - Z690

Product Type Motherboard - micro ATX

Chipset Type Intel Z690

Processor Socket 1 x LGA1700 Socket

Compatible Processors Core i5, Core i7, Core i9 (supports 12th Generation Intel Core)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports 1 x USB-C Gen 2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio HD Audio (8-channel)

LAN 2.5 Gigabit Ethernet

General

Product Type Motherboard - micro ATX

Chipset Type Intel Z690

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors Core i5, Core i7, Core i9 (supports 12th Generation Intel Core)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4933 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.)

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) 3.0

Audio

Type HD Audio (8-channel)

Compliant Standards High Definition Audio

LAN

Network Interfaces 2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2

Interfaces 1 x HDMI ¦ 1 x VGA ¦ 2 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack

Internal Interfaces 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x parallel - header ¦ 1 x SPDIF out - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support

Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage, water cooling flow rate, fan fail warning

Hardware Features Q-Flash, On/Off Charge, Q-Flash Plus, Game Boost, Audio Noise Guard, Intel Optane Memory Ready, M.2 Thermal Guard, Solid Pin Power Connectors, RGB FUSION 2.0, GIGABYTE Smart Fan 6, 6+2+1 Phase Power Design

Miscellaneous

Software Included Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control

Compliant Standards Plug and Play, DisplayPort 1.4, HDCP 2.3

Width 24.4 cm

Depth 24.4 cm
