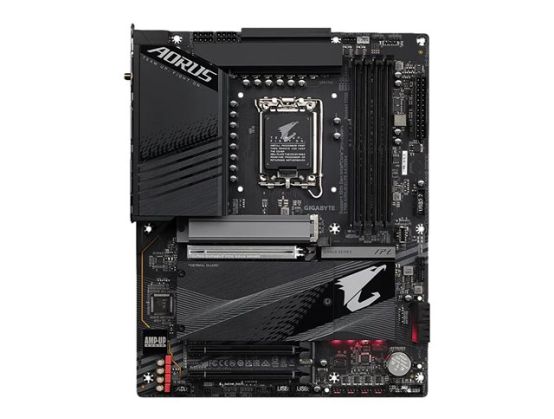

MB INT Z790 AORUS ELITE AX DDR4 ATX
Manufacture#: Z790 AORUS ELITE AX DDR4
Checking delivery…
Product details
1.0
motherboard
ATX
LGA1700 Socket
Payment options available at checkout
Main features
Gigabyte Z790 AORUS ELITE AX DDR4
1.0
motherboard
ATX
LGA1700 Socket
Z790 Chipset
USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2
2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
onboard graphics (CPU required)
HD Audio (8-channel)
Overview
Gigabyte Z790 AORUS ELITE AX DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - Z790
Product Description
Gigabyte Z790 AORUS ELITE AX DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - Z790
Product Type
Motherboard - ATX
Chipset Type
Intel Z790
Processor Socket
1 x LGA1700 Socket
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size
128 GB
RAM Supported
4 DIMM slots - DDR4, ECC (operate in non-ECC mode), non-ECC, unbuffered
Storage Ports
4 x SATA-600 (RAID), 4 x M.2
USB / FireWire Ports
1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
General
Product Type
Motherboard - ATX
Chipset Type
Intel Z790
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size
128 GB
Technology
DDR4
Bus Clock
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3666 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4300 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 4933 MHz (O.C.), 5000 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check
ECC (operate in non-ECC mode), non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Audio
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
LAN
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Expansion / Connectivity
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 4 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x aerial ¦ 1 x SPDIF out
Internal Interfaces
2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 4 x USB 2.0 - header ¦ 2 x Thunderbolt - header ¦ 1 x SPI - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type
AMI
BIOS Features
UEFI BIOS, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
System voltage, fan control, fan fail warning, water cooling flow rate
Hardware Features
Water Pump Header, Q-Flash Plus, Q-Flash, 16+1+2 Phase Power Design, 60A Smart Power Stage, 6 Layer PCB, 2x Copper PCB, pre-mounted I/O shield, Solid Pin Power Connectors, Ultra Durable PCIe Armor, MultiKey, GIGABYTE Smart Fan 6, M.2 Thermal Guard III, RGB FUSION, Ultra Durable, DIY Friendly Design
Miscellaneous
Software Included
Norton Internet Security
Compliant Standards
HDCP 2.3, FCC Part 15 Subpart B, WEEE, EU RoHS, UKCA
Width
30.5 cm
Depth
24.4 cm
