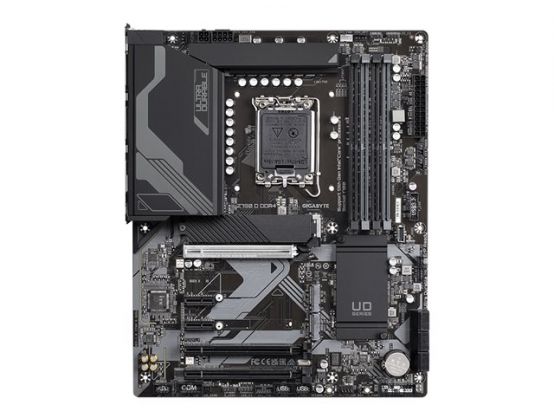

Gigabyte Z790 D DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - Z790

Name: Gigabyte Z790 D DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - Z790
Brand: GIGABYTE
SKU: 1TCPTMOT-004478
Price: 171.82 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004478

Manufacture#: Z790 D DDR4

£143.18

£171.82 inc VAT

Checking delivery…

Product details

1.0
motherboard
ATX
LGA1700 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Gigabyte Z790 D DDR4
1.0
motherboard
ATX
LGA1700 Socket
Z790 Chipset
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1
2.5 Gigabit LAN
onboard graphics (CPU required)
High Definition Audio (7.1-channel)

Overview

Gigabyte Z790 D DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - Z790

Specification

Product Description Gigabyte Z790 D DDR4 - 1.0 - motherboard - ATX - LGA1700 Socket - Z790

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 6 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports 1 x USB-C 3.2 Gen 2x2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio High Definition Audio (7.1-channel)

LAN 2.5 Gigabit Ethernet

General

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR4

Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4933 MHz (O.C.), 5000 MHz (O.C.), 5333 MHz (O.C.), 5133 MHz (O.C.)

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio

Type High Definition Audio (7.1-channel)

Compliant Standards High Definition Audio

LAN

Network Interfaces 2.5 Gigabit Ethernet

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Interfaces 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 2.0

Internal Interfaces 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 2 x Thunderbolt - header ¦ 1 x serial - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header

Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support

Hardware Monitoring System voltage, water cooling flow rate, fan fail warning, fan control, fan speed detection, temperature detection

Hardware Features Q-Flash, Ultra Durable, 2x Copper PCB, MOS Heatsink, 6 Layer PCB, Q-Flash Plus, M.2 Thermal Guard, DIY Friendly Design, 16+1+1 Phase Power Design, GIGABYTE Smart Fan 6, 60A Power Stage, PCIe EZ Latch

Miscellaneous

Software Included Norton Internet Security

Width 30.5 cm

Depth 24.4 cm

Package Details Box
