GIGABYTE

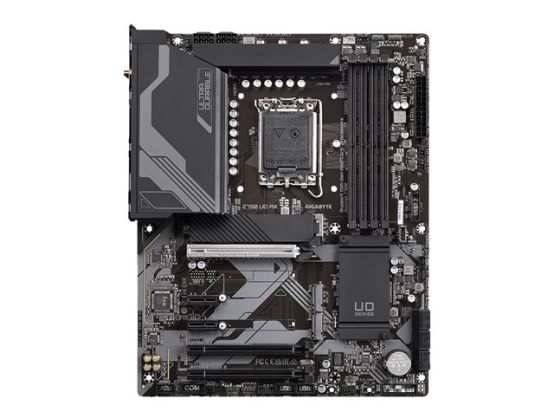

MB INT Z790 UD AX ATX

Name: MB INT Z790 UD AX ATX
Brand: GIGABYTE
SKU: 1TCPTMOT-004479
Price: 182.26 GBP
Availability: OutOfStock

SKU

1TCPTMOT-004479

Manufacture#: Z790 UD AX

£151.88

£182.26 inc VAT

Checking delivery…

Product details

1.0
motherboard
ATX
LGA1700 Socket

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Gigabyte Z790 UD AX
1.0
motherboard
ATX
LGA1700 Socket
Z790 Chipset
USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2
2.5 Gigabit LAN, Wi-Fi 6, Bluetooth
onboard graphics (CPU required)
High Definition Audio (7.1-channel)

Overview

Gigabyte Z790 UD AX - 1.0 - motherboard - ATX - LGA1700 Socket - Z790

Specification

Product Description Gigabyte Z790 UD AX - 1.0 - motherboard - ATX - LGA1700 Socket - Z790

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket 1 x LGA1700 Socket

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Max RAM Size 128 GB

RAM Supported 4 DIMM slots - DDR5, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports 6 x SATA-600 (RAID), 3 x M.2

USB / FireWire Ports 1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio High Definition Audio (7.1-channel)

LAN 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3

General

Product Type Motherboard - ATX

Chipset Type Intel Z790

Processor Socket LGA1700 Socket

Max Processors Qty 1

Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM

Max Size 128 GB

Technology DDR5

Bus Clock 4000 MHz, 4800 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.)

Supported RAM Integrity Check Non-ECC, ECC (operate in non-ECC mode)

Registered or Buffered Unbuffered

Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode

Audio

Type High Definition Audio (7.1-channel)

Compliant Standards High Definition Audio

LAN

Network Controller Intel AX210

Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3

Expansion / Connectivity

Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1

Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2

Interfaces 1 x DisplayPort ¦ 1 x USB 3.2 Gen 2 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI ¦ 1 x USB-C Gen2x2

Internal Interfaces 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 2 x Thunderbolt - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header

Power Connectors 24-pin main power connector, 8-pin ATX12V connector

Features

BIOS Type AMI

BIOS Features UEFI BIOS, DMI 2.7 support, SMBIOS 2.7 support, ACPI 5.0 support, WfM 2.0 support

Hardware Monitoring System voltage, fan fail warning, water cooling flow rate

Hardware Features AMD CrossFireX technology support, 16+1+1 Phase Power Design, Q-Flash Plus, Q-Flash, M.2 Thermal Guard, RGB FUSION 2.0, GIGABYTE Smart Fan 6, DIY Friendly Design, Ultra Durable

Miscellaneous

Software Included Norton Internet Security

Width 30.5 cm

Depth 24.4 cm
