Product Description

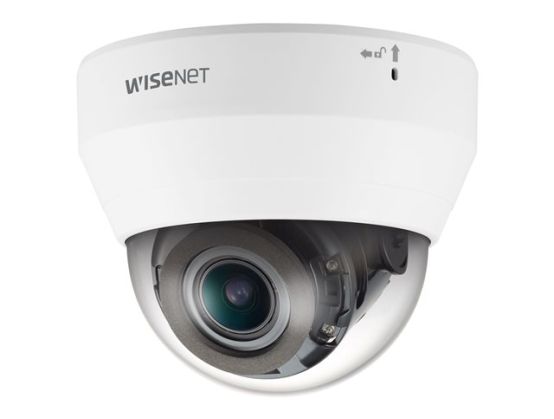

Hanwha Techwin QND-6082R1 - network surveillance camera - dome
Device Type
Network surveillance camera - fixed - dome
Dimensions (WxDxH)
11.98 cm x 11.98 cm x 9.88 cm
Weight
320 g
Colour
White, RAL 9003
Connectivity Technology
Wired
Camera
Colour - Day&Night
Optical Zoom
3.1 x
Max Resolution
1920 x 1080
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Video Modes
1080p
Optical Sensor Type
CMOS - 1/2.8" - 2 MP
Minimum Illumination
0.03 lux - colour - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on
Focal Length Control
Motorized zoom
Focal Length
3.2 mm - 10 mm
Focus Adjustment
(min distance 50 cm)
Lens Iris
F/1.6-2.9 - auto iris (DC)
Panning Range (degree)
350
Tilting Range (degree)
0 to 67
Interfaces
Composite video, Ethernet 10Base-T/100Base-TX
Voltage
DC 12 V / PoE Class 3
Features
Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), entrance / exit detection, WiseStream II support, anti-flicker, IP address filtering, Hallway View, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, Gain Control
Environmental Parameters (operating)
-10 °C - 55 °C; 0 - 90% RH relative humidity
