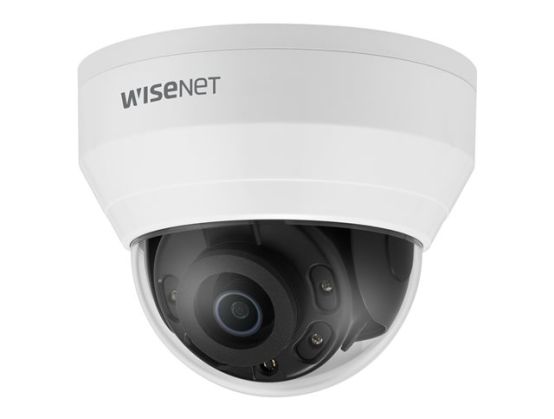

Name: Hanwha Techwin WiseNet Q QND-8010R - network surveillance camera - dome
Brand: Hanwha Techwin
SKU: 1TSECSPD-005721
Price: 162.58 GBP
Availability: OutOfStock

Overview

Main features

Hanwha Techwin WiseNet Q QND-8010R
Network surveillance camera
dome
colour (Day&Night)
5 MP
2592 x 1944
fixed focal
composite
LAN 10/100
MJPEG, H.264, H.265
PoE Class 3

Overview

Hanwha Techwin WiseNet Q QND-8010R - network surveillance camera - dome

Max. 5Megapixel (2592 x 1944) resolution
4mm fixed lens
0.15Lux (Color), 0Lux (B/W, IR LED on)
Max. 30fps@5MP (H.265 / H.264)
H.265, H.264, MJPEG codec support, Multiple streaming
Day & Night, WDR (120dB)
Tampering, Motion detection, Defocus detection
Micro SD / SDHC / SDXC memory slot (Max. 128GB)
Hallway view, WiseStream II support
IR Viewable length 20m, PoE

Specification

Product Description Hanwha Techwin WiseNet Q QND-8010R - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome

Dimensions (WxDxH) 11.06 cm x 11.06 cm x 8.95 cm

Weight 360 g

Colour White, RAL 9003

Connectivity Technology Wired

Camera Colour - Day&Night

Max Resolution 2592 x 1944

Frame Rate (max) 30 frames per second

Motion Detection Yes

Optical Sensor Type CMOS - 1/2.8" - 5 MP

Minimum Illumination 0.15 lux - colour - F2.0 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on

Focal Length Control Fixed focal

Focal Length 2.8 mm

Lens Iris F/2.0

Panning Range (degree) 0 to 350

Tilting Range (degree) 0 to 67

Interfaces Composite video, Ethernet 10Base-T/100Base-TX

Voltage PoE Class 3

Features Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, anti-flicker, IP address filtering, Hallway View, Unicast Streaming, Handover, ONVIF (Profile T) support, Virtual Line detection

Environmental Parameters (operating) -10 °C - 50 °C; 0 - 90% relative humidity

General

Device Type Network surveillance camera

Form Factor Dome

Connectivity Technology Wired

Width 11.06 cm

Depth 11.06 cm

Height 8.95 cm

Weight 360 g

Camera

Type Colour - Day&Night - fixed

Digital Video Format MJPEG, H.264, H.265

Max Digital Video Resolution 2592 x 1944

Motion Detection Yes

Exposure Range 1/5 sec - 1/12000 sec

Minimum Illumination 0.15 lux - colour - F2.0 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on

Infrared LEDs Yes

Infrared Distance 20 m

Video Capture 2592 x 1944 @ 30 fps

RAM 512 MB

Flash Memory 256 MB

Features Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, anti-flicker, IP address filtering, Hallway View, Unicast Streaming, Handover, ONVIF (Profile T) support, Virtual Line detection

Image Sensor

Type 5 MP CMOS 1/2.8"

Effective Pixels 2592 x 1944

Lens Construction

Type Fixed focal

Focal Length 2.8 mm

Lens Iris F/2.0

Horizontal Field of View (degree) 104.7

Vertical Field of View (degree) 76.5

Diagonal Field of View (degree) 136

Panning

Range (degree) 0 to 350

Tilting

Range (degree) 0 to 67

Interfaces

Video Composite video

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP

Alarm Inputs Qty 1

Alarm Outputs Qty 1

Expansion / Connectivity

Ports Composite video ¦ LAN/power - RJ-45

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Compliant Standards IEEE 802.3af, IEEE 802.1x

Colour White, RAL 9003

Power

Power Requirements PoE Class 3

Power Device 7.5 Watt

Software / System Requirements

OS Required Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12, Apple macOS 10.13, Apple macOS 10.14

Environmental Parameters

Min Operating Temperature -10 °C

Max Operating Temperature 50 °C

Relative Humidity (operating) 0 - 90%
