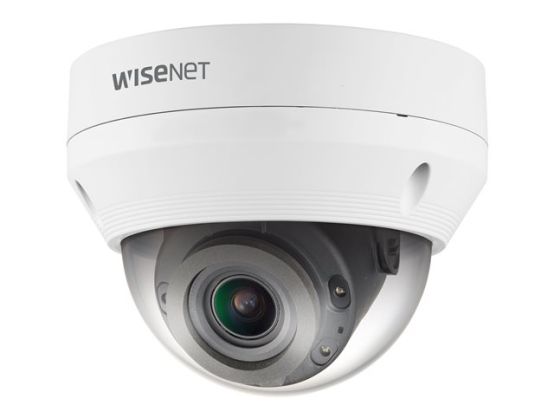

Hanwha Techwin WiseNet Q QNV-6082R - network surveillance camera - dome
Checking delivery…
Product details
- Network surveillance camera
- dome
- colour (Day&Night)
- 2 MP
Payment options available at checkout
Main features
- Hanwha Techwin WiseNet Q QNV-6082R
- Network surveillance camera
- dome
- colour (Day&Night)
- 2 MP
- 1920 x 1080
- 1080p
- motorized
- audio
- composite
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE
Overview
Hanwha Techwin WiseNet Q QNV-6082R - network surveillance camera - dome
- Max. 2 megapixel (1920 x 1080) resolution
- H.265, H.264 and multiple streaming support
- Motion detection, tampering and defocus detection
- Hallway view (90˚/270˚), LDC support
- Micro SD/SDHC/SDXC memory slot
- 30-meter IR viewable length
- IP66- and IK10-rated
Product Description
Hanwha Techwin WiseNet Q QNV-6082R - network surveillance camera - dome
Device Type
Network surveillance camera - fixed - dome
Audio
Yes: two-way audio capability
Dimensions (WxDxH)
13.7 cm x 13.7 cm x 10.61 cm
Weight
710 g
Colour
White
Connectivity Technology
Wired
Camera
Colour - Day&Night - NTSC, PAL
Optical Zoom
3.1 x
Max Resolution
1920 x 1080
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Video Modes
1080p
Optical Sensor Type
CMOS - 1/2.8" - 2 MP
Minimum Illumination
0.095 lux - colour - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on
Focal Length Control
Motorized zoom
Focal Length
3.2 mm - 10 mm
Lens Iris
F/1.6-2.9
Panning Range (degree)
350
Tilting Range (degree)
0 to 67
Interfaces
Composite video, Ethernet 10Base-T/100Base-TX
Voltage
DC 12 V / PoE
Features
Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, ONVIF (Profile T) support, direction detection
Environmental Parameters (operating)
-30 °C - 55 °C; 0 - 90% relative humidity
General
Device Type
Network surveillance camera
Audio Support
Yes: two-way audio capability
Audio Formats
G.726, ADPCM, G.711, G.711a
Form Factor
Dome
Connectivity Technology
Wired
Width
13.7 cm
Depth
13.7 cm
Height
10.61 cm
Weight
710 g
Camera
Type
Colour - Day&Night - fixed
Video Format
NTSC, PAL
Digital Video Format
MJPEG, H.264, H.265
Max Digital Video Resolution
1920 x 1080
Motion Detection
Yes
Video Modes
1080p
Exposure Range
1/5 sec - 1/12000 sec
Minimum Illumination
0.095 lux - colour - F1.6 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on
Infrared LEDs
Yes
Infrared Distance
30 m
Video Capture
1920 x 1080 @ 30 fps
Features
Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, ONVIF (Profile T) support, direction detection
Image Sensor
Type
2 MP CMOS 1/2.8"
Effective Pixels
1920 x 1080
Lens Construction
Type
Motorized zoom
Optical Zoom
3.1 x
Focal Length
3.2 mm - 10 mm
Lens Iris
F/1.6-2.9
Horizontal Field of View (degree)
32.2 - 109
Vertical Field of View (degree)
18.7 - 57.4
Diagonal Field of View (degree)
38 - 132
Panning
Range (degree)
350
Tilting
Range (degree)
0 to 67
Interfaces
Video
Composite video
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, LLDP
Alarm Inputs Qty
1
Alarm Outputs Qty
1
Expansion / Connectivity
Ports
Composite video ¦ Audio line-in/microphone ¦ LAN/power - RJ-45
Supported Memory Cards
microSD Card, microSDHC Card, microSDXC Card
Miscellaneous
Compliant Standards
IEC 60529 IP66, IK10, IEEE 802.1x, IEEE 802.1af
Colour
White
Power
Power Requirements
DC 12 V / PoE
Power Device
7.7 Watt
Software / System Requirements
OS Required
Microsoft Windows 7 / 8.1 / 10, Apple macOS 10.12 - 10.14
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
55 °C
Relative Humidity (operating)
0 - 90%
