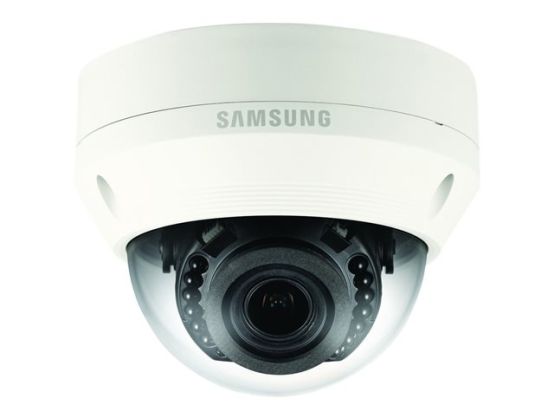

Name: Hanwha Techwin WiseNet Q QNV-7080R - network surveillance camera - dome
Brand: Hanwha Techwin
SKU: 1TSECSPD-006550
Price: 322.16 GBP
Availability: OutOfStock

Overview

Main features

Hanwha Techwin WiseNet Q QNV-7080R
Network surveillance camera
dome
outdoor
dust / vandal / waterproof
colour (Day&Night)
4 MP
2592 x 1520
auto iris
motorized
audio
wired
LAN 10/100
MJPEG, H.264, H.265
DC 12 V / PoE Class 3

Overview

The QNV-7080R from Hanwha's Q Series affordable network camera line is a 4MP outdoor vandal dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, motorized varifocal lens, true WDR, defocus detection, hallway view, one-way audio and SD card slot.

4MP resolution
Motorized varifocal lens
H.265, H.264, MJPEG codec supported, multiple streaming
Day & Night, WDR
Motion detection, tampering, defocus detection
Micro SD memory slot

Specification

Product Description Hanwha Techwin WiseNet Q QNV-7080R - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome - outdoor - dust / vandal / waterproof

Audio Yes

Dimensions (WxDxH) 13.7 cm x 13.7 cm x 10.61 cm

Weight 680 g

Colour Ivory

Connectivity Technology Wired

Camera Colour - Day&Night

Optical Zoom 4.3 x

Max Resolution 2592 x 1520

Frame Rate (max) 30 frames per second

Motion Detection Yes

Optical Sensor Type CMOS - 1/3" - 4 MP

Minimum Illumination 0.15 lux - colour - 30 IRE ¦ 0 lux - B&W - infrared LEDs on

Focal Length Control Motorized zoom

Focal Length 2.8 mm - 12 mm

Focus Adjustment Automatic, manual (min distance 50 cm)

Lens Iris F/1.4 - auto iris (DC)

Panning Range (degree) 0 to 350

Tilting Range (degree) 0 to 67

Interfaces Ethernet 10Base-T/100Base-TX

Voltage DC 12 V / PoE Class 3

Features Backlight Compensation (BLC), progressive scanning, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Intelligent Video Analysis (IVA), tamper-detection, Lens Distortion Correction, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support

Environmental Parameters (operating) -30 °C - 55 °C; 0 - 90% relative humidity

General

Device Type Network surveillance camera

Audio Support Yes

Form Factor Dome

Connectivity Technology Wired

Width 13.7 cm

Depth 13.7 cm

Height 10.61 cm

Weight 680 g

Camera

Type Colour - Day&Night - fixed - outdoor - dust / vandal / waterproof

Digital Video Format MJPEG, H.264, H.265

Max Digital Video Resolution 2592 x 1520

Motion Detection Yes

Minimum Illumination 0.15 lux - colour - 30 IRE ¦ 0 lux - B&W - infrared LEDs on

Infrared LEDs Yes

Infrared Distance 30 m

Digital Video Capture Resolution 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 320 x 240, 1024 x 768, 720 x 576, 1280 x 1024, 800 x 600, 1920 x 1080, 640 x 360, 2304 x 1296, 2560 x 1440, 800 x 450, 2592 x 1520

Frame Rate (max) 30 frames per second

Features Backlight Compensation (BLC), progressive scanning, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Intelligent Video Analysis (IVA), tamper-detection, Lens Distortion Correction, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support

Image Sensor

Type 4 MP CMOS 1/3"

Total Pixels 2720 x 1536

Effective Pixels 2688 x 1520

Lens Construction

Type Motorized zoom

Optical Zoom 4.3 x

Focal Length 2.8 mm - 12 mm

Lens Iris F/1.4 auto iris (DC)

Focus Adjustment Automatic, manual

Min Focus Distance 50 cm

Horizontal Field of View (degree) 26 - 109.7

Vertical Field of View (degree) 15.2 - 60.8

Panning

Range (degree) 0 to 350

Tilting

Range (degree) 0 to 67

Interfaces

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, PIM-SM

Alarm Inputs Qty 1

Alarm Outputs Qty 1

Expansion / Connectivity

Ports LAN/power - RJ-45 ¦ Audio line in

Supported Memory Cards microSD Card, microSDHC Card, microSDXC Card

Miscellaneous

Compliant Standards IK10, IP66

Colour Ivory

Power

Power Requirements DC 12 V / PoE Class 3

Power Device 7.2 Watt

Software / System Requirements

OS Required Microsoft Windows 7, Windows 8.1, Apple OS X 10.9 Mavericks, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11

Environmental Parameters

Min Operating Temperature -30 °C

Max Operating Temperature 55 °C

Relative Humidity (operating) 0 - 90%
