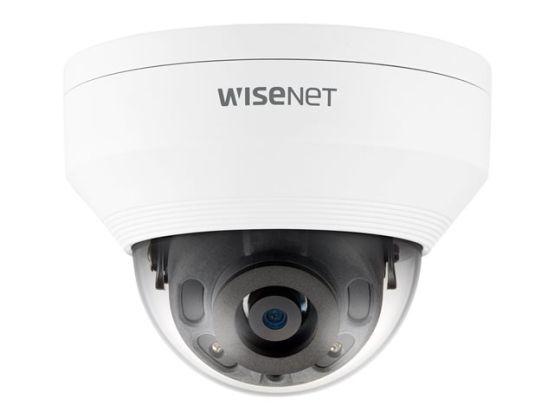

Name: Hanwha Techwin WiseNet Q QNV-8020R - network surveillance camera - dome
Brand: Hanwha Techwin
SKU: 1TSECSPD-005750
Price: 184.1 GBP
Availability: OutOfStock

Overview

Main features

Hanwha Techwin WiseNet Q QNV-8020R
Network surveillance camera
dome
colour (Day&Night)
5 MP
2592 x 1944
fixed focal
composite
LAN 10/100
MJPEG, H.264, H.265
PoE Class 3

Overview

Hanwha Techwin WiseNet Q QNV-8020R - network surveillance camera - dome

Max.5 Megapixel (2592 x 1944) resolution
4 mm fixed lens
H.265, H.264, MJPEG codec support, Multiple streaming
Day & Night, WDR (120 dB)
Tampering, motion detection, defocus detection
Micro SD/SDHC/SDXC memory slot
Hallway view, WiseStream II support
IR viewable length 25 m

Specification

Product Description Hanwha Techwin WiseNet Q QNV-8020R - network surveillance camera - dome

Device Type Network surveillance camera - fixed - dome

Dimensions (WxDxH) 12.03 cm x 12.03 cm x 9.17 cm

Weight 510 g

Colour White

Connectivity Technology Wired

Camera Colour - Day&Night - NTSC, PAL

Max Resolution 2592 x 1944

Frame Rate (max) 30 frames per second

Motion Detection Yes

Optical Sensor Type CMOS - 1/2.8" - 5 MP

Minimum Illumination 0.15 lux - colour - F1.6 ¦ 0 lux - B&W - infrared LEDs on

Focal Length Control Fixed focal

Focal Length 4 mm

Lens Iris F/1.6

Panning Range (degree) 350

Tilting Range (degree) 0 to 67

Interfaces Composite video, Ethernet 10Base-T/100Base-TX

Voltage PoE Class 3

Features Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, motion detection, ONVIF (Profile T) support, direction detection

Environmental Parameters (operating) -30 °C - 55 °C; 0 - 90% relative humidity

General

Device Type Network surveillance camera

Form Factor Dome

Connectivity Technology Wired

Width 12.03 cm

Depth 12.03 cm

Height 9.17 cm

Weight 510 g

Camera

Type Colour - Day&Night - fixed

Video Format NTSC, PAL

Digital Video Format MJPEG, H.264, H.265

Max Digital Video Resolution 2592 x 1944

Motion Detection Yes

Exposure Range 1/5 sec - 1/12000 sec

Minimum Illumination 0.15 lux - colour - F1.6 ¦ 0 lux - B&W - infrared LEDs on

Infrared LEDs Yes

Infrared Distance 25 m

Digital Video Capture Resolution 1280 x 720, 720 x 480, 640 x 480, 1280 x 960, 720 x 576, 800 x 600, 1920 x 1080, 640 x 360, 2592 x 1944, 800 x 448

Frame Rate (max) 30 frames per second

Features Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, motion detection, ONVIF (Profile T) support, direction detection

Image Sensor

Type 5 MP CMOS 1/2.8"

Effective Pixels 2592 x 1944

Lens Construction

Type Fixed focal

Focal Length 4 mm

Lens Iris F/1.6

Horizontal Field of View (degree) 79.8

Vertical Field of View (degree) 58.1

Diagonal Field of View (degree) 105.9

Panning

Range (degree) 350

Tilting

Range (degree) 0 to 67

Interfaces

Video Composite video

Network Interface Ethernet 10Base-T/100Base-TX

Network Protocols DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, LLDP

Alarm Inputs Qty 1

Alarm Outputs Qty 1

Expansion / Connectivity

Ports Composite video ¦ LAN/power - RJ-45

Supported Memory Cards SD Memory Card, SDXC Memory Card, SDHC Memory Card

Miscellaneous

Compliant Standards FCC, cULus, IK10, IP66, EAC, IEEE 802.3af, IEEE 802.1x

Colour White

Power

Power Requirements PoE Class 3

Power Device 5.4 Watt

Software / System Requirements

OS Required Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12

Environmental Parameters

Min Operating Temperature -30 °C

Max Operating Temperature 55 °C

Relative Humidity (operating) 0 - 90%
