General
Device Type

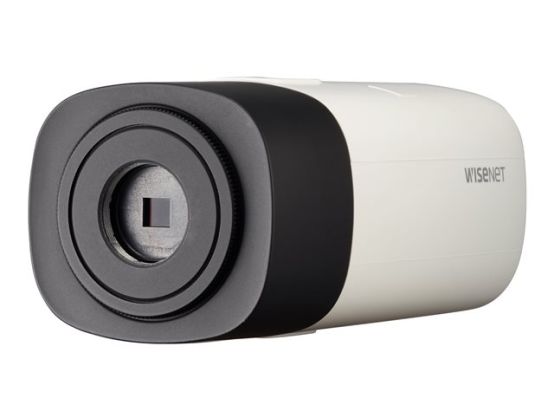

Network surveillance camera (no lens)
Audio Support
Yes: two-way audio capability
Form Factor
Box
Connectivity Technology
Wired
Width
7.31 cm
Depth
14.78 cm
Height
6.66 cm
Weight
420 g
Camera
Type
Colour - Day&Night - fixed
Video Format
NTSC, PAL
Digital Video Format
MPEG-4, MJPEG, H.264, AVC, H.265
Max Digital Video Resolution
1920 x 1080
Motion Detection
Yes
Digital Zoom
24
Exposure Range
2 sec - 1/12000 sec
Minimum Illumination
0.01 lux - colour - F1.2 - shutter 1/30 sec ¦ 0.001 lux - B&W - F1.2 - shutter 1/30 sec
Video Capture
1920 x 1080 @ 60 fps
Features
Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support
Image Sensor
Type
2.2 MP CMOS 1/2.8"
Total Pixels
1945 x 1109
Effective Pixels
1945 x 1097
Lens Construction
Type
C/CS-mount
Lens Iris
Auto iris (DC, P-Iris)
Focus Adjustment
Manual
Interfaces
Video
Composite video
Network Interface
Ethernet 10Base-T/100Base-TX
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP, PIM-SM
Control Interface
RS-485
Alarm Inputs Qty
1
Alarm Outputs Qty
1
Expansion / Connectivity
Ports
Composite video ¦ Audio line-in/microphone ¦ Audio line out ¦ USB - Micro-USB Type B
Supported Memory Cards
SD Memory Card, SDXC Memory Card, SDHC Memory Card
Miscellaneous
Compliant Standards
IEEE 802.3af
Colour
Black, ivory
Power
Power Requirements
DC 12 V / AC 24 V / PoE
Power Device
8 Watt
Software / System Requirements
Software Included
FF Group Roadway ANPR
OS Required
Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
-10 °C
Max Operating Temperature
55 °C
Relative Humidity (operating)
0 - 90%
