Product Description

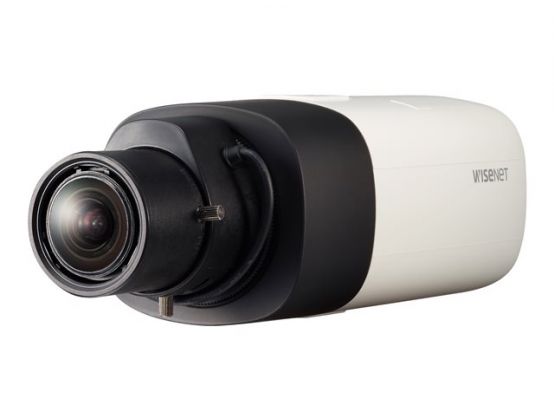

Hanwha Techwin WiseNet X XNB-8000 - network surveillance camera (no lens)
Device Type
Network surveillance camera (no lens) - fixed
Audio
Yes: two-way audio capability
Dimensions (WxDxH)
7.31 cm x 6.66 cm x 14.78 cm
Weight
420 g
Colour
Black, ivory
Connectivity Technology
Wired
Camera
Colour - Day&Night - NTSC, PAL
Max Resolution
2560 x 1920
Frame Rate (max)
30 frames per second
Motion Detection
Yes
Optical Sensor Type
CMOS - 1/1.8" - 6 MP
Minimum Illumination
0.07 lux - colour - F1.2 - shutter 1/30 sec ¦ 0.007 lux - B&W - F1.2 - shutter 1/30 sec
Lens Mounting
C/CS-mount
Focus Adjustment
Automatic, manual
Lens Iris
Auto iris (DC, P-Iris)
Interfaces
Composite video, Ethernet 10Base-T/100Base-TX
Control Interface
RS-485
Voltage
DC 12 V / AC 24 V / PoE
Features
Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support
Environmental Parameters (operating)
-10 °C - 55 °C; 0 - 90% relative humidity
