General
Device Type

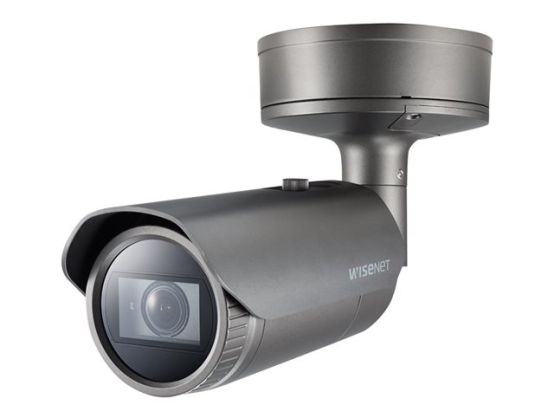

Network surveillance camera
Audio Support
Yes
Audio Formats
AAC, G.726, G.711, U-LAW
Connectivity Technology
Wired
Width
9.1 cm
Depth
36.86 cm
Height
9.1 cm
Weight
2.2 kg
Camera
Type
Colour - Day&Night - fixed - outdoor
Digital Video Format
MJPEG, H.264, H.265
Max Digital Video Resolution
3328 x 1872
Motion Detection
Yes
Exposure Range
1/5 sec - 1/12000 sec
Minimum Illumination
0.05 lux - colour - F1.2 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on
Infrared LEDs
Yes
Infrared Distance
40 m
Video Capture
3328 x 1872 @ 30 fps
RAM
4 GB
Flash Memory
512 MB
Features
Backlight Compensation (BLC), Wide Dynamic Range (WDR), Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), WiseNet 2, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Defog, auto gain control, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, digest authentication, Samsung Super Noise Reduction (SSNRV), IP address filtering, Unicast Streaming, ONVIF (Profile T) support
Image Sensor
Type
CMOS 1/2.8"
Lens Construction
Type
Motorized zoom
Optical Zoom
3 x
Focal Length
2.8 mm - 8.4 mm
Lens Iris
F/1.2-2.8 auto iris (DC, P-Iris)
Min Focus Distance
70 cm
Horizontal Field of View (degree)
40.2 - 114
Vertical Field of View (degree)
25.5 - 62
Diagonal Field of View (degree)
46.3 - 133
Interfaces
Video
Composite video
Network Interface
Ethernet 10Base-T/100Base-TX/1000Base-T
Network Protocols
DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SRTP, LLDP
Expansion / Connectivity
Ports
Audio line-in/microphone ¦ Audio line out ¦ Composite video ¦ USB - Micro-USB Type B
Supported Memory Cards
SD Memory Card, SDXC Memory Card, SDHC Memory Card
Miscellaneous
Compliant Standards
FCC, NEMA Type 4X, cULus, IP67, IK10, IP66, EAC, IEEE 802.3af
Colour
Dark grey
Power
Power Requirements
DC 12 V / AC 24 V / PoE
Power Device
14.5 Watt
Software / System Requirements
OS Required
Windows 8.1 or later, Apple MacOS X 10.13 or later
Environmental Parameters
Min Operating Temperature
-50 °C
Max Operating Temperature
60 °C
Relative Humidity (operating)
0 - 95% (non-condensing)
