Product Description

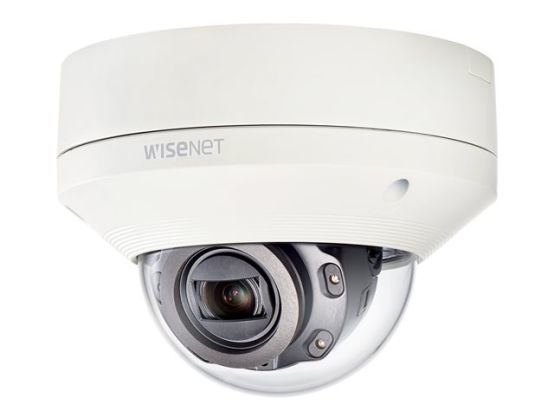

Hanwha Techwin WiseNet X XNV-6080R - network surveillance camera - dome
Device Type
Network surveillance camera - fixed - dome - outdoor - dustproof / waterproof / vandal-proof
Audio
Yes: two-way audio capability
Dimensions (WxDxH)
16 cm x 16 cm x 11.85 cm
Weight
995 g
Colour
Ivory
Connectivity Technology
Wired
Camera
Colour - Day&Night - NTSC, PAL
Optical Zoom
4.3 x
Max Resolution
1920 x 1080
Frame Rate (max)
60 frames per second
Motion Detection
Yes
Optical Sensor Type
CMOS - 1/2.8" - 2.2 MP
Minimum Illumination
0.015 lux - colour - F1.4 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on
Focal Length Control
Motorized zoom
Focal Length
2.8 mm - 12 mm
Focus Adjustment
Automatic, manual, motorised (min distance 50 cm)
Lens Iris
F/1.4-3.6 - auto iris (DC, P-Iris)
Panning Range (degree)
0 to 354
Tilting Range (degree)
0 to 67
Interfaces
Composite video, Ethernet 10Base-T/100Base-TX
Voltage
DC 12 V / AC 24 V / PoE
Features
Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support
Environmental Parameters (operating)
-40 °C - 55 °C; 0 - 90% relative humidity
