Product Description

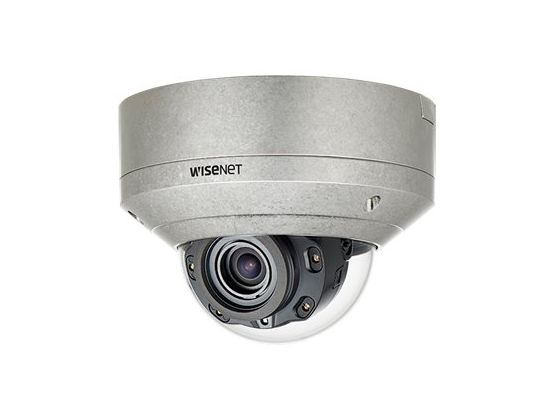

Hanwha Techwin WiseNet X XNV-8080RSA - network surveillance camera - dome
Device Type
Network surveillance camera - fixed - dome - vandal-proof
Audio
Yes: two-way audio capability
Dimensions (WxDxH)
16.2 cm x 16.2 cm x 12.05 cm
Weight
2.8 kg
Colour
Silver
Connectivity Technology
Wired
Camera
Colour - Day&Night
Optical Zoom
2.4 x
Max Resolution
2560 x 1920
Frame Rate (max)
60 frames per second
Motion Detection
Yes
Optical Sensor Type
CMOS - 1/1.8" - 5 MP
Minimum Illumination
0.07 lux - colour - F1.3 - shutter 1/30 sec ¦ 0 lux - B&W - infrared LEDs on
Focal Length Control
Motorized zoom
Focal Length
3.9 mm - 9.4 mm
Focus Adjustment
Automatic, manual, motorised (min distance 50 cm)
Lens Iris
F/1.3-2.4 - auto iris (DC, P-Iris)
Panning Range (degree)
0 to 354
Tilting Range (degree)
0 to 67
Interfaces
Composite video, Ethernet 10Base-T/100Base-TX
Voltage
DC 12 V / AC 24 V / PoE
Features
Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), digital PTZ function, Camera Tampering Detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, digest authentication, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Hallway View, fog detection, Unicast Streaming, stainless steel housing, Handover, ONVIF (Profile T) support, Virtual Line detection, Directional Detection, sound classification, digital auto tracking, Gain Control
Manufacturer Warranty
3-year warranty
Environmental Parameters (operating)
-40 °C - 55 °C; 0 - 90% RH relative humidity
