Product Description

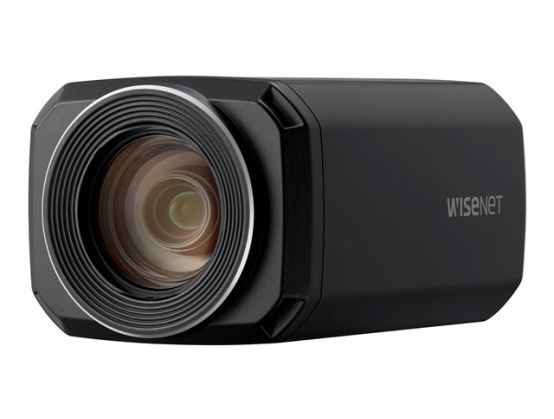

Hanwha Techwin WiseNet X XNZ-6320A - network surveillance camera
Device Type
Network surveillance camera - fixed
Audio
Yes: two-way audio capability
Dimensions (WxDxH)
7.6 cm x 9.6 cm x 14.35 cm
Weight
578 g
Colour
Black
Connectivity Technology
Wired
Camera
Colour - Day&Night
Optical Zoom
32 x
Max Resolution
1920 x 1080
Frame Rate (max)
60 frames per second
Motion Detection
Yes
Optical Sensor Type
CMOS - 1/2.8" - 2 MP
Minimum Illumination
0.05 lux - colour - F1.6 - shutter 1/30 sec ¦ 0.005 lux - B&W - F1.6 - shutter 1/30 sec
Focal Length Control
Motorized zoom
Focal Length
4.44 mm - 142.6 mm
Focus Adjustment
(min distance 1.5 m)
Lens Iris
F/1.6-4.4 - auto iris (DC)
Interfaces
Ethernet 10Base-T/100Base-TX
Voltage
DC 12 V / PoE Class 3
Features
Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, Samsung Super Noise Reduction (SSNRV), IP address filtering, fog detection, motion detection, ONVIF (Profile T) support, direction detection, Virtual Line detection
Environmental Parameters (operating)
-10 °C - 55 °C; 0 - 90% relative humidity
