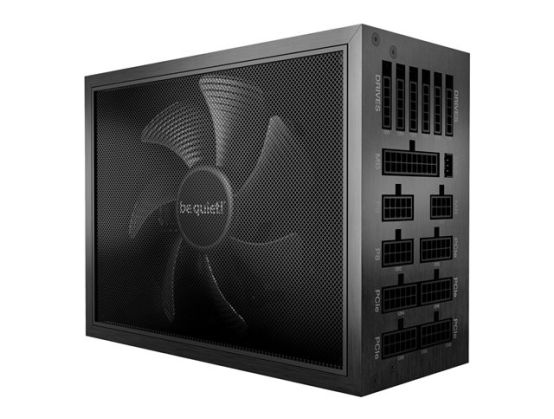

Product Descriptionbe quiet! Dark Power PRO 12 1200W - power supply - 1200 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.51/ EPS12V 2.92
80 PLUS Certification80 PLUS Titanium
Weight2.41 kg
LocalisationEurope
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity1200 Watt
Output Current+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 35 A ¦ +12V2 - 35 A ¦ +12V3 - 35 A ¦ +12V4 - 35 A ¦ +12V5 - 40 A ¦ +12V6 - 40 A ¦ -12V - 0.5 A ¦ +5VSB - 3.5 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 10 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 4 PIN internal power ¦ 16 x 15 pin Serial ATA power ¦ 2 x 4 PIN mini-power connector
Modular Cable ManagementYes
Cooling System135 mm fan
Included AccessoriesCable ties, thumbscrews, screws, cable bag, overclock slot bracket with switch, overclock jumper
ColourBlack
Dimensions (WxDxH)15 cm x 20 cm x 8.6 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty10 years warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.51/ EPS12V 2.92
PSU Form FactorATX
ColourBlack
LocalisationEurope
Power Device
Input VoltageAC 100-240 V
Frequency Required50 - 60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 10 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 4 PIN internal power ¦ 16 x 15 pin Serial ATA power ¦ 2 x 4 PIN mini-power connector
Output Voltage+3.3, +5, ±12 V
Power Capacity1200 Watt
Output Current+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 35 A ¦ +12V2 - 35 A ¦ +12V3 - 35 A ¦ +12V4 - 35 A ¦ +12V5 - 40 A ¦ +12V6 - 40 A ¦ -12V - 0.5 A ¦ +5VSB - 3.5 A
Efficiency93.9% at 20% Load (230 VAC), 94.7% at 50% Load (230 VAC), 93% at 100% Load (230 VAC)
Power Factor (PF)0.99
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Titanium
Miscellaneous
Included AccessoriesCable ties, thumbscrews, screws, cable bag, overclock slot bracket with switch, overclock jumper
MTBF300,000 hours
Cooling System135 mm fan
FeaturesLLC resonant converter technology, fully modular, overclock mode, Full Bridge topology, Synchronous Rectifier (SR) technology, DC-DC technology, switchable single/six 12V rails, fluid dynamic bearing cooling fan, overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, Multi-GPU Technologies Supported
