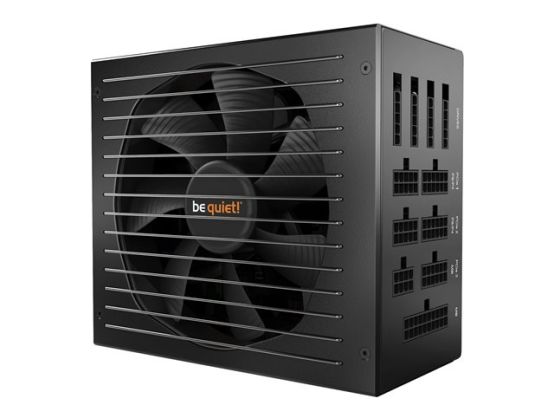

Product Descriptionbe quiet! Straight Power 11 1200W - power supply - 1200 Watt
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.51/ EPS12V 2.92
80 PLUS Certification80 PLUS Platinum
Input VoltageAC 100-240 V
Output Voltage+3.3, +5, ±12 V
Power Capacity1200 Watt
Output Current+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 24 A ¦ +12V2 - 24 A ¦ +12V3 - 38 A ¦ +12V4 - 38 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Output connectors1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 11 x 15 pin Serial ATA power ¦ 1 x power 8 pin +12V
Modular Cable ManagementYes
Cooling System135 mm fan
Dimensions (WxDxH)15 cm x 17 cm x 8.6 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypePower supply - active Power Factor Correction (PFC) - internal
Specification ComplianceATX12V 2.51/ EPS12V 2.92
PSU Form FactorATX
Power Device
Input VoltageAC 100-240 V
Frequency Required50 - 60 Hz
Power Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 4 x 4 PIN internal power ¦ 11 x 15 pin Serial ATA power ¦ 1 x power 8 pin +12V
Output Voltage+3.3, +5, ±12 V
Power Capacity1200 Watt
Output Current+3.3V - 25 A ¦ +5V - 25 A ¦ +12V1 - 24 A ¦ +12V2 - 24 A ¦ +12V3 - 38 A ¦ +12V4 - 38 A ¦ -12V - 0.5 A ¦ +5VSB - 3 A
Efficiency93.9%
Power Factor (PF)0.99
Modular Cable ManagementYes
80 PLUS Certification80 PLUS Platinum
Miscellaneous
MTBF100,000 hours
Cooling System135 mm fan
FeaturesDC-DC technology, Synchronous Rectifier (SR) technology, 4 x 12V rail, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, overheat protection, Multi-GPU Technologies Supported
Compliant StandardsERP, EAC, CCC, CAN ICES-3 Class B, NMB-3 Class B, FCC, TUV Rheinland, cTUVus, RoHS
